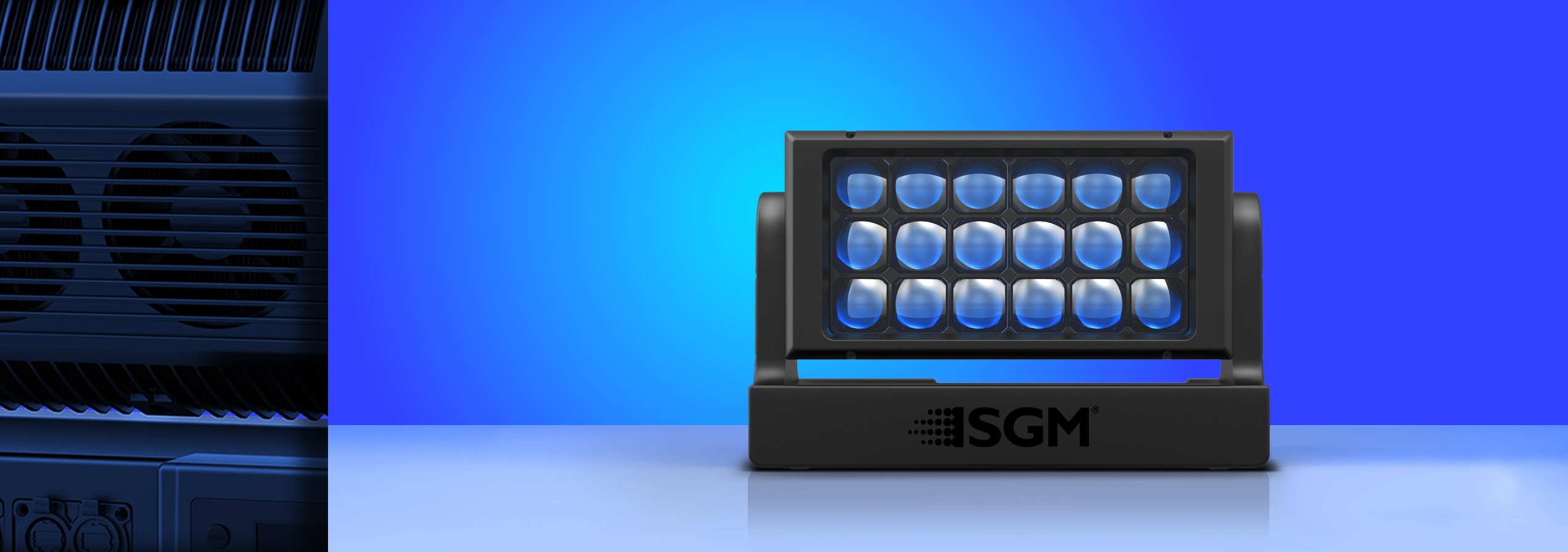

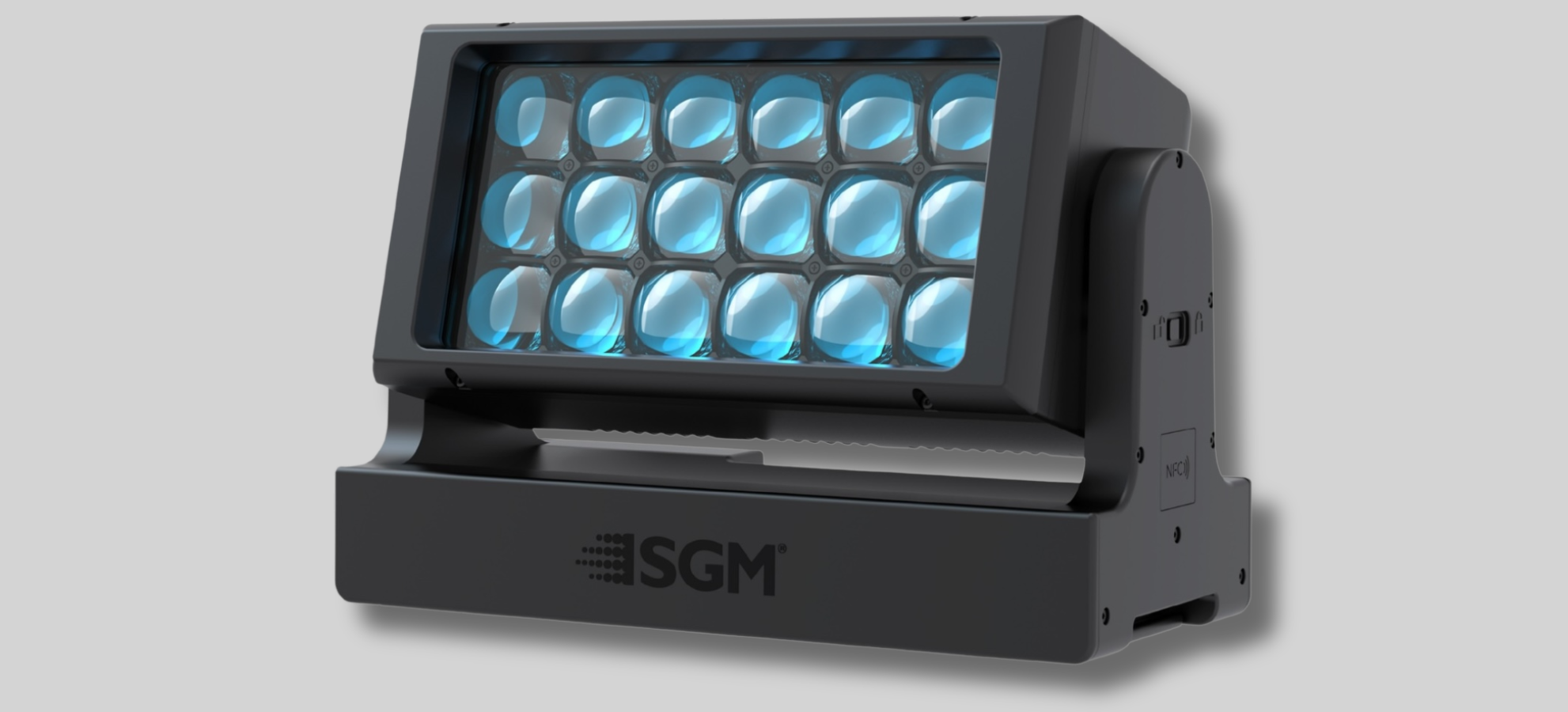

PALCO Z-FX is designed to give rental companies a powerful, highly flexible effect fixture that delivers maximum impact across a wide range of applications.
Powered by the latest generation 60W RGBL LED with ColorBoost™ technology and a highly efficient optical system, PALCO Z-FX produces any thing from a punchy 3.5° narrow beam to a beautiful 45° wide wash - combined with a fast, motorized zoom. PALCO Z-FX delivers a stunning 21,000 lumens calibrated output and high illuminance levels, making it more than 50% brighter than any other fixture in this category.
This makes it a true multi-purpose tool, capable of sharp beam effects, dynamic pixel looks, and effective flood and wash applications - all from a single fixture.
SPINNING & ZOOMING WITH CONTROLLABLE PIXELS
With 18 powerful and individually controllable pixels combined with a fast, continuous 360° tilt rotation, PALCO Z-FX is purpose-built to excel in large quantities and array-based setups. This makes it ideal for creating dynamic, eye-catching cycle effects with a high level of visual density and impact.
Color calibration is, as expected, fully compatible with all other SGM PALCO products. This ensures seamless integration into existing SGM PALCO inventories and guarantees consistent, uniform color output across mixed rigs and complex lighting setups.
Despite its significantly enhanced performance capabilities, PALCO Z-FX maintains a compact and lightweight design at approximately 23 kg. It is smaller and lighter than any comparable fixture in its class, contributing to easier handling, faster transport, more efficient rigging, and reduced turnaround times - ultimately improving overall cost efficiency.
Comprehensive connectivity is built in, offering full support for DMX, Ethernet, LumenRadio wireless control, and NFC setup via the SGM app, allowing for flexible and efficient configuration in any production environment.
With an IP65 rating, PALCO Z-FX is engineered for dependable operation in all conditions, ensuring reliable performance both indoors and outdoors, regardless of weather.
PRELIMINARY SPECIFICATION
- Powerful 18 x 60W RGBL LED with Color Boost technology
- Individual pixel control for color and dimming
- 21.000 Lumens Output
- 87.000 Lux @ 5m
- 25.000 Lux @ 10m
- 16.1 lm/W efficacy
- 894 lm/kg efficiency
- 2.000K – 10.000K variable CCT
- CRI 85+ (calibrated at 5600K CCT)
- 3.5° - 45° linear motorized zoom
- 1:13 Zoom Ratio
- Continuous 360° motorized tilt rotation
- IP65-rated for temporary outdoor use
- DMX, RDM, ArtNet & sACN via 5-pin XLR and Ethernet
- Integrated LumenRadio Wireless CRMX
- NFC setup with SGM iOS & Android App
- Weight 23.5kg / 51.8lbs
- Dimensions (w/h/d) 491 x 320 x 218mm
- Max power consumption 1300W
