- 18 powerful 60W RGBL LED
- 360° tilt rotation
- 3°- 55° zoom
- Individual pixel control
- IP65-rated for outdoor use
- DMX, RDM, ArtNet & sACN via 5-pin XLR and Ethernet
- NFC setup through SGM application

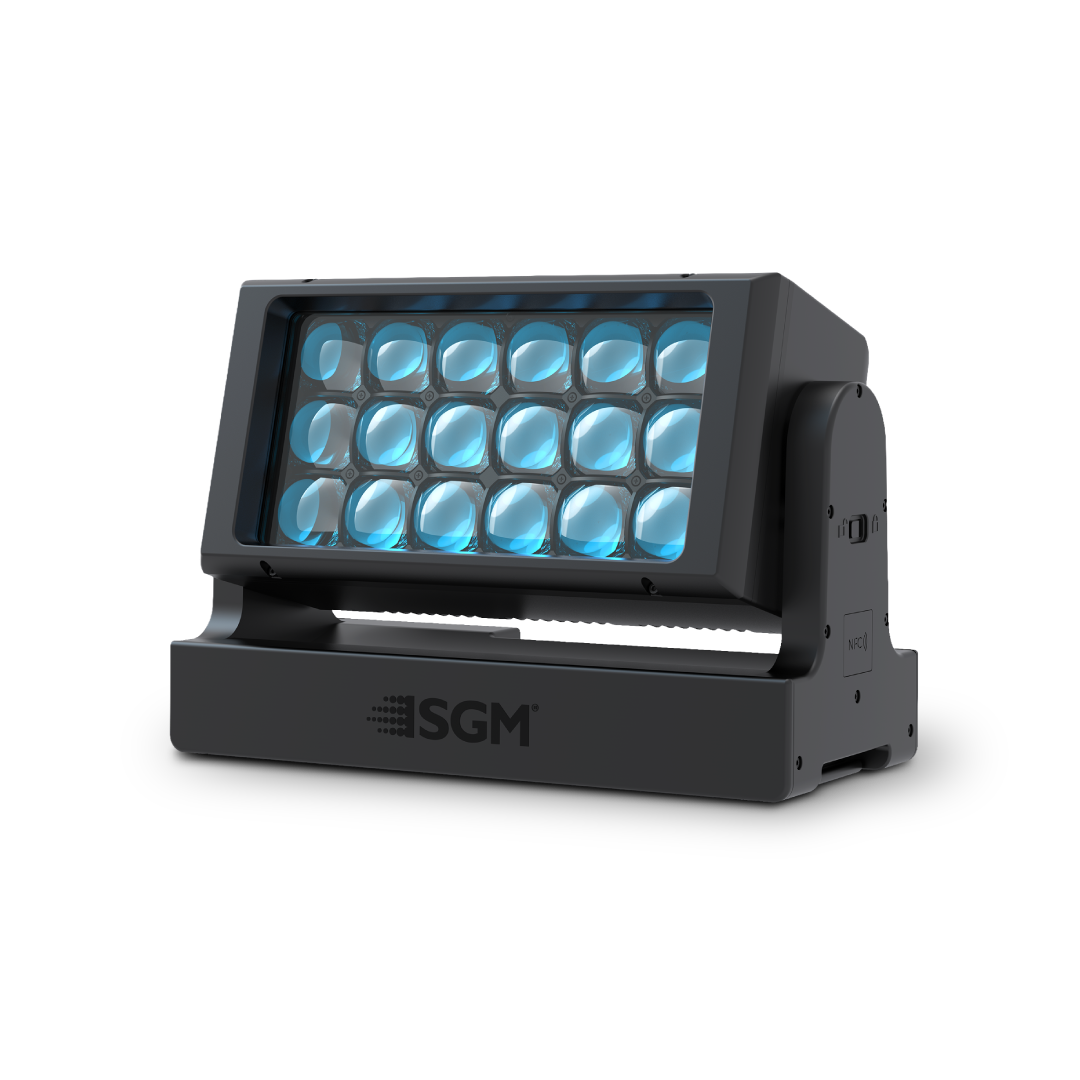

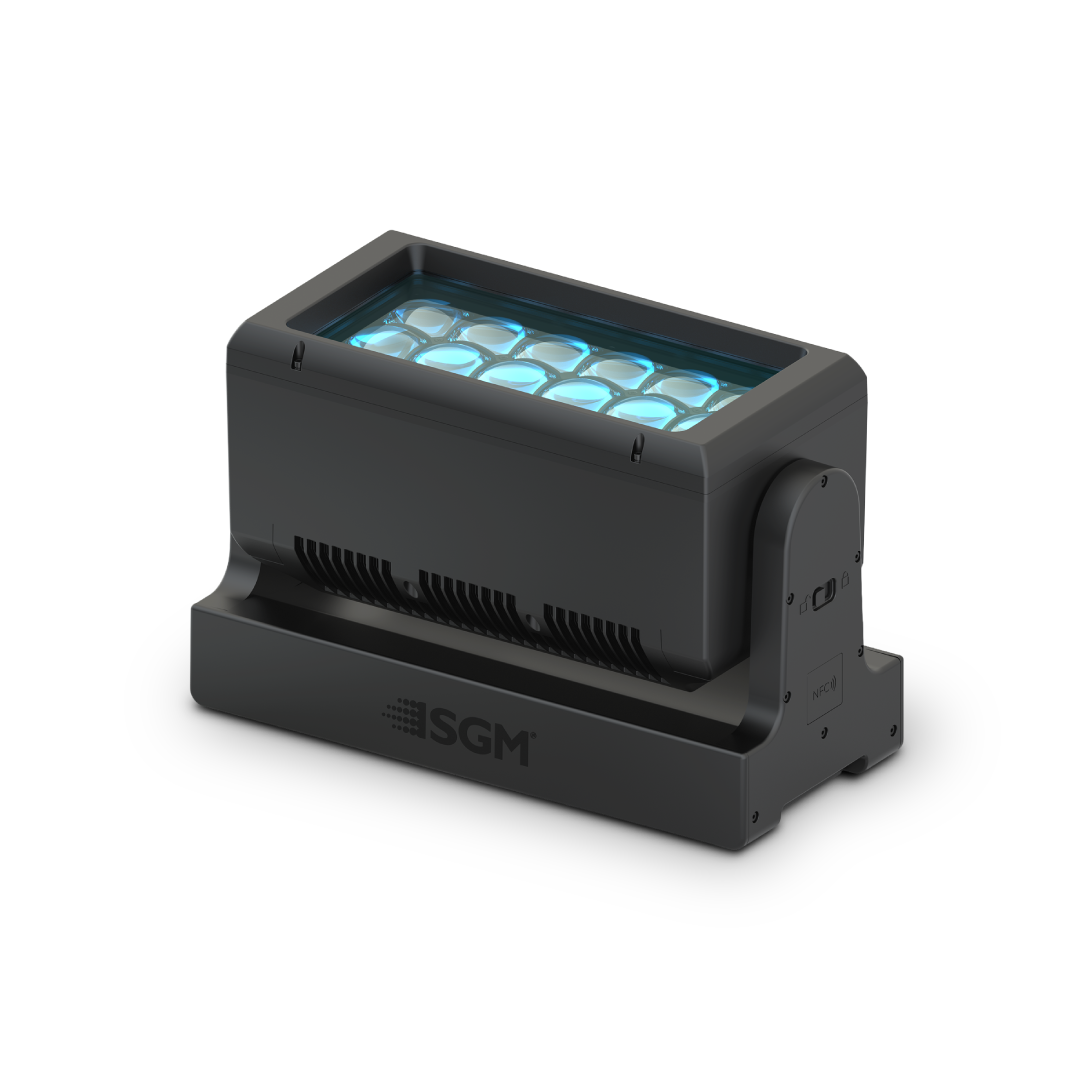

PALCO Z-FX expands the PALCO platform into the world of dynamic effects and visual texture.
Combining continuous 360° tilt rotation, individually controllable RGBL pixels, and a wide motorized zoom, it delivers movement, beam control, and pixel effects from a single fixture.
Designed for touring, festivals, broadcast, and live events, PALCO Z-FX creates striking visual compositions while maintaining colour consistency across the PALCO range.
PALCO Z-FX is the creative effect extension of the PALCO platform, developed for lighting designers seeking movement, texture, and visual impact within a single fixture. Eighteen individually controllable 60W RGBL pixels, combined with continuous 360° tilt rotation and a 3°- 55° motorized zoom, enable dynamic effects ranging from tight aerial beams and pixel-driven chases to wide wash looks.
The fixture introduces a new design language to the PALCO family, where motion becomes an integrated part of the visual experience. Continuous rotation and advanced pixel mapping allow designers to create large-scale visual compositions and kinetic effects that go beyond the capabilities of traditional wash fixtures.
For rental companies and production professionals, PALCO Z-FX offers exceptional versatility by combining the roles of effect and wash fixtures into a single solution. This increases fixture utilization, simplifies rig design, and delivers a strong return on investment across touring productions, festivals, broadcast studios, and live events.
Specification
| Optical Data | |
|---|---|
| Lightsource | 18 X High Output RGBL LEDs |
| 18 x 60W RGBL LEDs | |
| Zoom range | 3° to 55° |
| Photometric | |
| Average RF / TM-30-15 (CTC) | 82 |
| Color temperature range | 2000K - 10000K |
| Efficacy | 15.8 lm/W* |
| Light output - all on | 21000 lm* |
| Lux @ 5m | 92000 lux |
| Max. CRI @ 5600K | 76.5 |
| Physical | |
| Color options | Black - RAL 9004 |
| IK rating | IK06 |
| IP class | IP65 |
| Lens material | PMMA |
| Material | Aluminium |
| Plastic | |
| Stainless steel | |
| Tempered Glass | |
| Net dimensions L x H x W (imperial) | 19.3 x 12.2 x 8.6 inches |
| Net dimensions L x H x W (metric) | 491 x 310 x 218 mm |
| Net weight | 21.7 kg (47.8 lbs) |
| Electrical | |
| Input voltage (nominal) | 100 - 240 VAC; 50 / 60 Hz |
| Max power consumption | 1300 W |
| Max power thru @ 230 V | 5.18 A |
| Power factor | 0.967 PF (230 V) |
| Standby power consumption | 48 W |
| Thermal | |
| Cooling | Active, Forced Air, Temperature-regulated |
| Temperature range, start-up | -20°C to 45°C |
| Temperature range, storage | -20°C to 45°C |
| Total heat dissipation, max power | 4435.6 BTU per hour |
| Total heat dissipation, standby | 163.8 BTU per hour |
| Included items | |
| Included items | 2 Omega bracket with quater-turn fasteners |
Download
-
Software
-
Illustrations
-
User Manual and Specifications
Certifications & classifications
Ordering information
| Product name | Item number |
|---|---|
| PALCO Z-FX | 80300503 |
