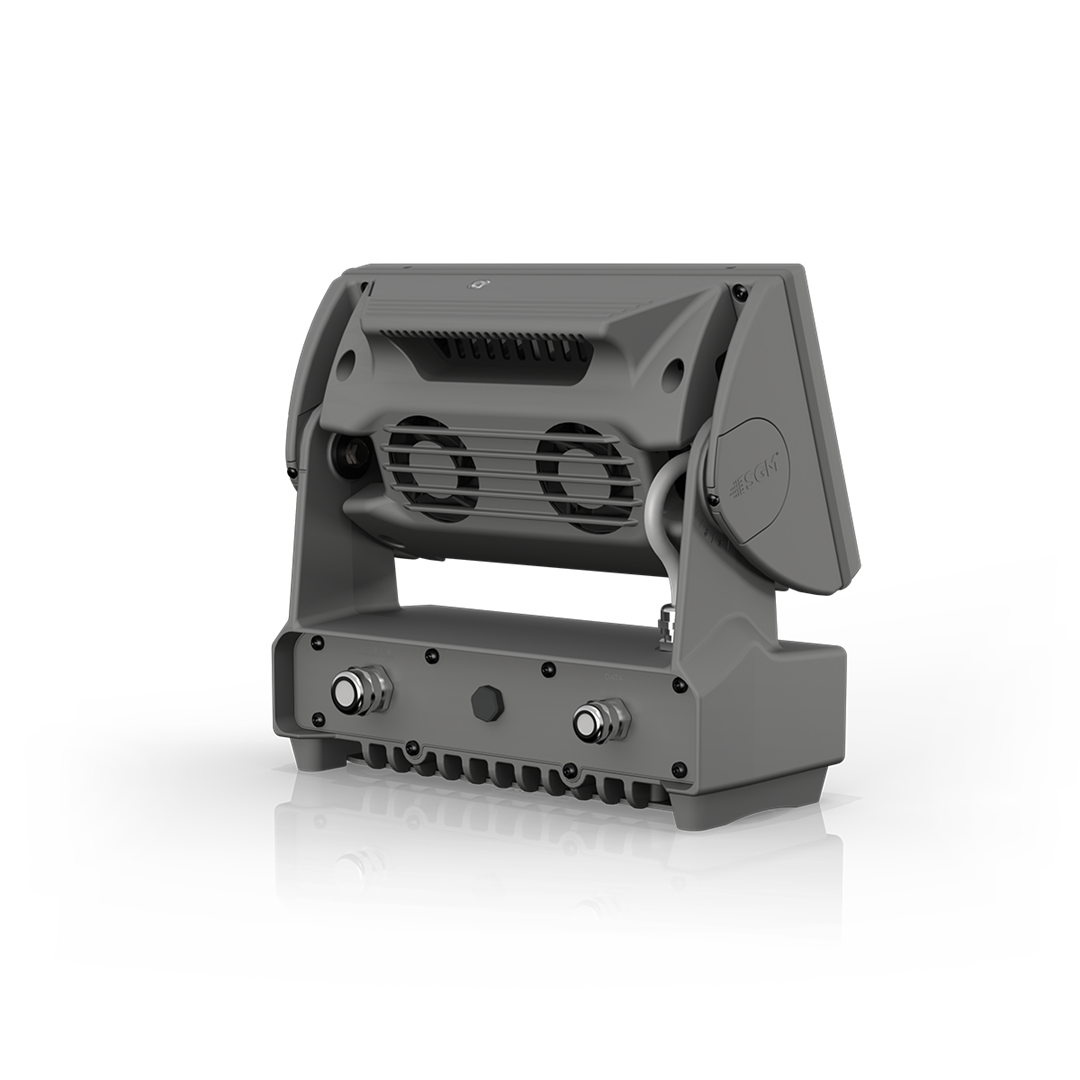

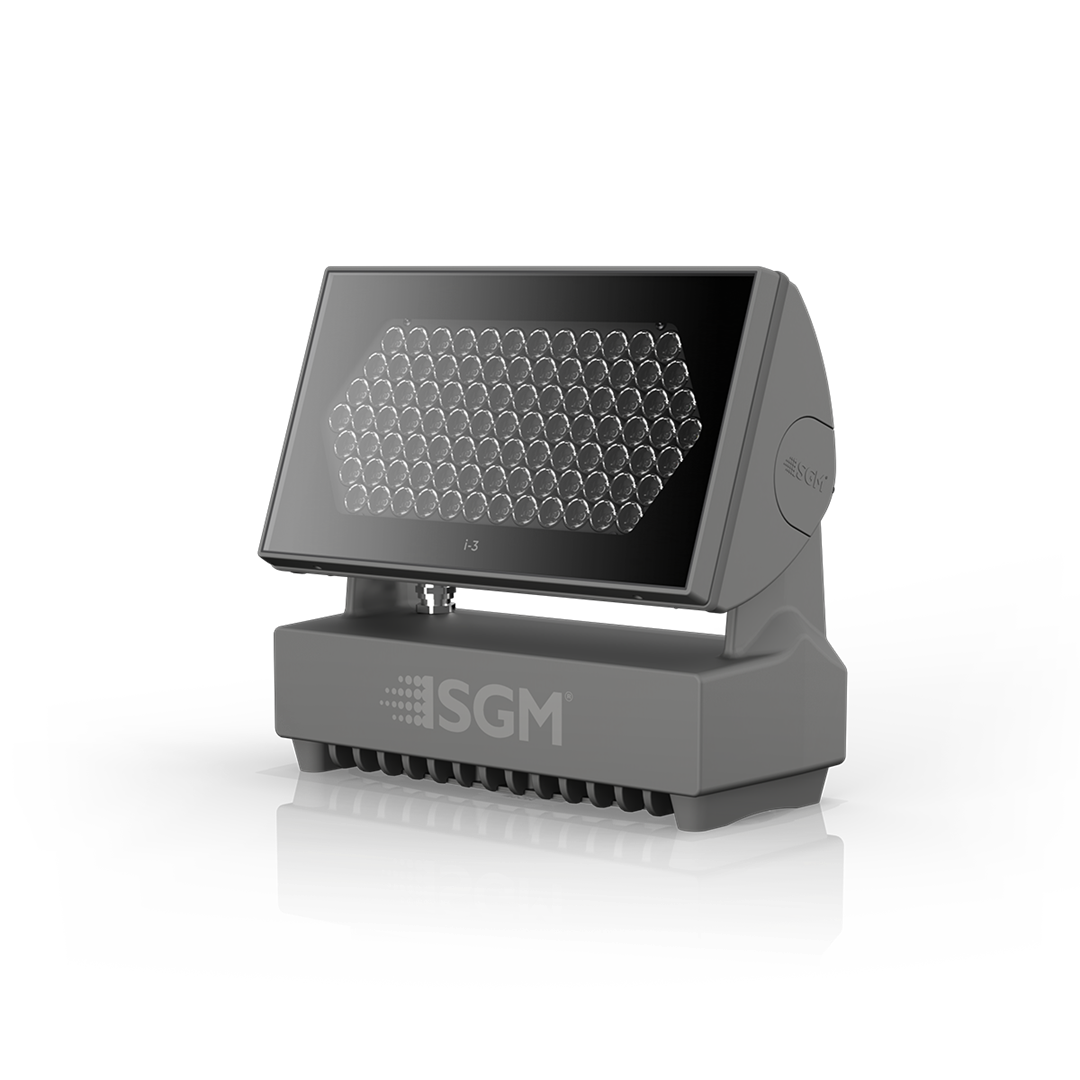

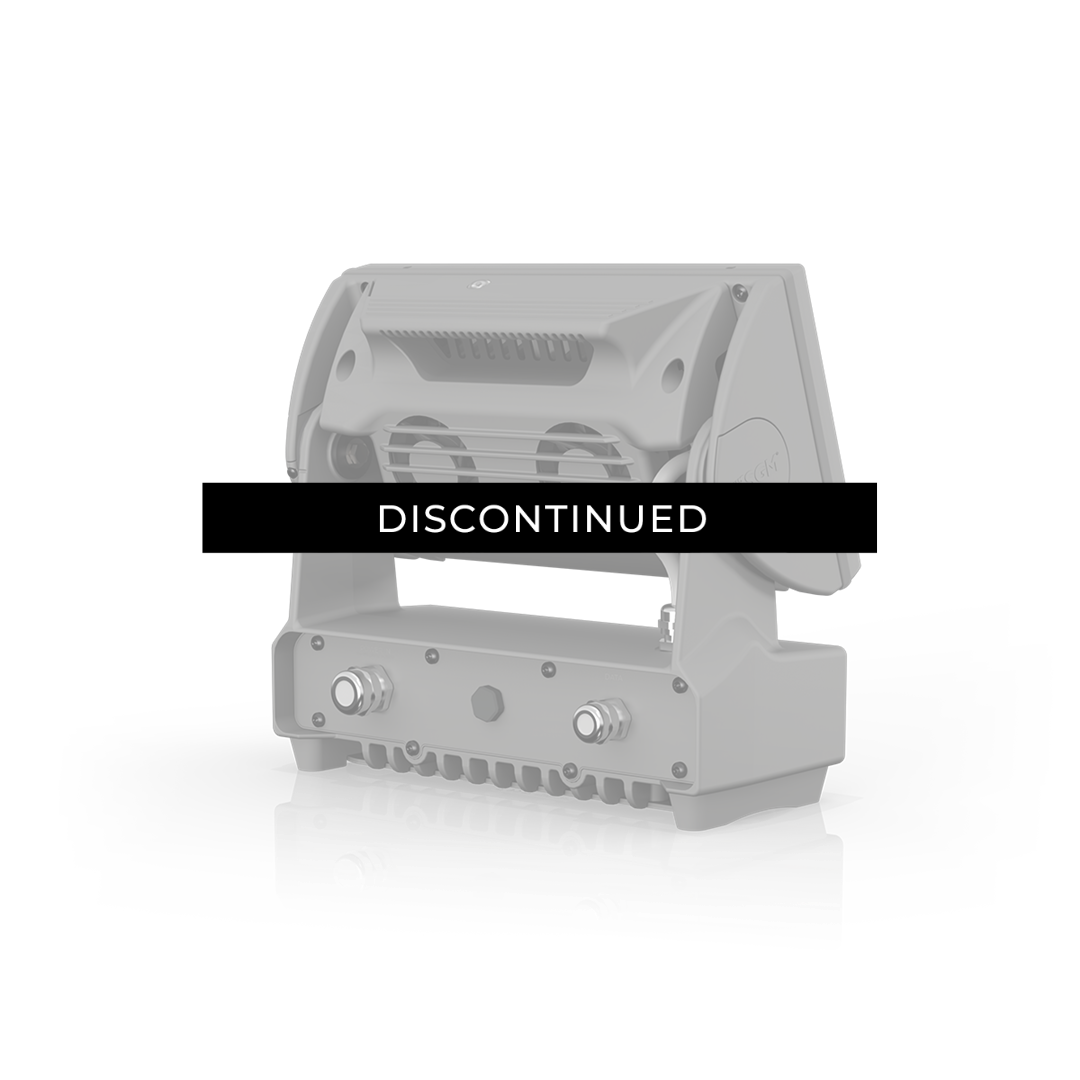

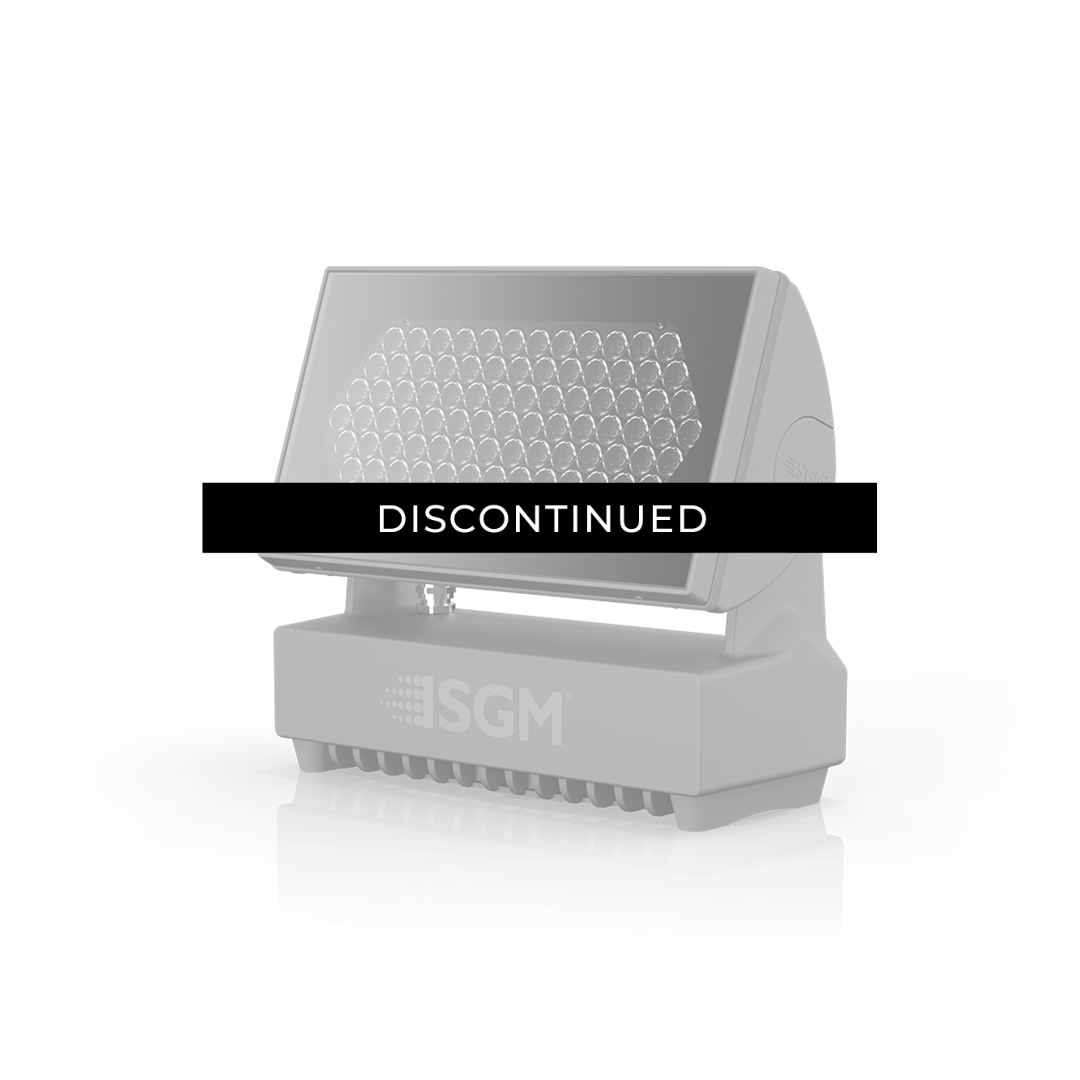

i-3 Wash POI

RGBW LED Wash Light

Housing colors

Grey RAL 7037

Custom any RAL

Info shortcuts

93 Individual Color LEDs with DynaMix™ dynamic color drive
RGBW with 4000K or 3000K native white
High-quality dimming performance with color filter emulation and VersaPath™
CTC control from 2,000K to 10,000K
DMX, sACN, Art-Net, Wireless CRMX or AirGlow control options
IK09 and 3G rated with C5 corrosion resistance
IP66-rated with built-in dehumidifier and superior thermal management

This thermal management techonology provides Advaced Temperature Control monitored via sensors and software, keeping optimal LED junction temperatures, and ensuring maximum reliability for long-term use. The ThermalDriveTM system includes cutting-edge heat removal via passive thermal tecniques and active forced-air cooling (depending on the product), specifically designed to maintain LED efficiency while extending fixture's lifetime.

SGM's TruColorTM luminaires use an enhanced color engine that improves accuracy and consistency both for color mixing and low-end dimming, while using the same procedures to match the SGM color palette.

SGM's integrated patented Dehumidification process eliminates humidity and breaks down corrosive molecules deriving from polluted air to avoid destructive corrosion. Inbuilt dehumidifiers constantly remove trapped hydrogen from inside of the lighting fixture in a solid estate electrolytic process with no moving parts. The DryTechTM procedure is also based on a Ingress Protection rating of 65 or 66 (depending on the fixture), intended as a full protection against dust and other particles, while ensuring protection against direct water jets.

DynaMix® is the latest version of the SGM calibrated color engine. It is a new scalable drive design which brings an unprecedented level of output to all new SGM Light products by increasing the output of mixed colors and whites through a combination of firmware and hardware. LED engines with DynaMix can utilize the full power capacity of a power source when using combinations of drive channels. What does this mean? Essentially a huge boost in output. With DynaMix each SGM fixture is capable of much greater output, maximizing efficiency and budget.

The i-3 Wash POI is part of the revolutionary family of SGM Light 3 Series fixtures. The 3 Series introduces numerous features and performance improvements which makes it unique amongst fixtures in this size class. Incorporating an extremely powerful dynamically driven LED engine, this compact powerhouse can be used to wash large areas or pick out main architectural details without the need for very large fixtures. It’s induvial color LEDs provide powerful and efficient light in narrow to medium beam angles.

Specification

Optical Data
LED expected lifetime (L70)	50,000 hours
Lightsource	Individual Color LED Matrix
	RGBW3K
	RGBW4K
Native lens options	8.5°
	11°
	29°
	60°
	10x60°
	12x39°
	Asymmetric
Photometric
Native beam angle(s)	11°
	8.5°
	29°
	14x27° Asym with 5° offset
	12x39°
	10x60°
	55° (with 60° lens)
Physical
Color options	Black - RAL 9004
	Custom color - Any RAL
	White - RAL 9010
	Grey - RAL 7037
IK rating	IK09
IP class	IP66
Lens material	Tempered glass front
Material	Aluminium
	PC/ASA
	Stainless steel
Net dimensions L x H x W	290 x 252 x 133 mm
Net dimensions L x H x W (inches)	11.4 x 9.9 x 5.2 inches
Net weight	7.65 kg (16.9 lbs)
Vibration Rating	3G
Electrical
Electrical protection	Overload protection with automatic recover
Input voltage, nominal	115 - 277 VAC; 50 / 60 Hz
Max inrush current 230VAC	60 A
Max power consumption	300 W
Power factor	0.99 PF (230 V)
Power Supply Unit	High-efficiency electronic switch-mode
Standby power consumption	6 W
Connections
Data cable diameter	6,5 mm +/- 0,2 mm
DMX data in/out	1.5 meter cable for DMX In and DMX Thru
Power	Power cable 1.5m with bare ends
Power cable diameter	8,5 mm +/- 0,3 mm
Installation
Mounting point	2 M-10 locking points (suitable for one optional POI Omega bracket)
Orientation	Any
Thermal
Cooling	Active, Forced Air, Temperature-regulated
Humidity (max.)	98 %
Temperature range, operating	-40°C to 50°C
Temperature range, operating max	50 °C
Temperature range, operating min	-40 °C
Temperature range, start-up	-20°C to 50°C
Temperature range, storage	-40°C to 80°C
Total heat dissipation, max power	1023.6 BTU per hour
Total heat dissipation, standby	20.5 BTU per hour
Included items
Included items	2 M-10 screws
Conforms To
CE - 2014/30/EU: EMC Directive	EN 55015
	EN 61547
	EN 61000-3-2
	EN 61000-3-3
	EN 55032
	EN 55035
CE - 2014/35/EU: Low Voltage Directive	EN 60598-1
	EN 60598-2-17
	EN 62471
	EN 60529
Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Reg.	UK SI 2012 No. 3032
UKCA - UK SI 2016 No. 1091: Electromagnetic Compatibility Regulations 2016	EN 55032
	EN IEC 55015
	EN 55035
	EN 61547
	EN 61000-3-2
	EN 61000-3-3
UKCA - UK SI 2016 No. 1101: The Electric Equipment (Safety) Regulations 2016	EN IEC 60598-1
	EN IEC 60598-2-17
	EN 62471
	EN 60529
UL	UL Std. 1573
Certified To
CSA	CSA-E598-2-17-98, Ed: 1
	CSA E60598-1, Ed: 3

Show all specifications

Download

Show all downloads

Certifications & classifications

Ordering information

Product name					Item number
Filter:

i-3 Wash POI, RGBW4K, 8.5°, GR, DMX							80232405
i-3 Wash POI, RGBW4K, 11°, GR, DMX							80232406
i-3 Wash POI, RGBW4K, 29°, GR, DMX							80232407
i-3 Wash POI, RGBW4K, 12x39°, GR, DMX							80232408
i-3 Wash POI, RGBW4K, Asym, GR, DMX							80232409
i-3 Wash POI, RGBW4K, 8.5°, GR, Ethernet							80232425
i-3 Wash POI, RGBW4K, 11°, GR, Ethernet							80232426
i-3 Wash POI, RGBW4K, 29°, GR, Ethernet							80232427
i-3 Wash POI, RGBW4K, 12x39°, GR, Ethernet							80232428
i-3 Wash POI, RGBW4K, Asym, GR, Ethernet							80232429
i-3 Wash POI, RGBW4K, 8.5°, GR, CRMX							80232445
i-3 Wash POI, RGBW4K, 11°, GR, CRMX							80232446
i-3 Wash POI, RGBW4K, 29°, GR, CRMX							80232447
i-3 Wash POI, RGBW4K, 12x39°, GR, CRMX							80232448
i-3 Wash POI, RGBW4K, Asym, GR, CRMX							80232449
i-3 Wash POI, RGBW4K, 8.5°, GR, AirGlow							80232465
i-3 Wash POI, RGBW4K, 60°, GR, DMX							80232605
i-3 Wash POI, RGBW4K, 10x60°, GR, DMX							80232606
i-3 Wash POI, RGBW4K, 60°, GR, Ethernet							80232625
i-3 Wash POI, RGBW4K, 10x60°, GR, Ethernet							80232626
i-3 Wash POI, RGBW4K, 60°, GR, CRMX							80232645
i-3 Wash POI, RGBW4K, 10x60°, GR, CRMX							80232646
i-3 Wash POI, RGBW4K, 60°, GR, AirGlow							80232665
i-3 Wash POI, RGBW4K, 10x60°, GR, AirGlow							80232666
i-3 Wash POI, RGBW4K, 8.5°, CU, DMX							80232415
i-3 Wash POI, RGBW4K, 11°, CU, DMX							80232416
i-3 Wash POI, RGBW4K, 29°, CU, DMX							80232417
i-3 Wash POI, RGBW4K, 12x39°, CU, DMX							80232418
i-3 Wash POI, RGBW4K, Asym, CU, DMX							80232419
i-3 Wash POI, RGBW4K, 8.5°, CU, Ethernet							80232435
i-3 Wash POI, RGBW4K, 11°, CU, Ethernet							80232436
i-3 Wash POI, RGBW4K, 29°, CU, Ethernet							80232437
i-3 Wash POI, RGBW4K, 12x39°, CU, Ethernet							80232438
i-3 Wash POI, RGBW4K, Asym, CU, Ethernet							80232439
i-3 Wash POI, RGBW4K, 8.5°, CU, CRMX							80232455
i-3 Wash POI, RGBW4K, 11°, CU, CRMX							80232456
i-3 Wash POI, RGBW4K, 29°, CU, CRMX							80232457
i-3 Wash POI, RGBW4K, 12x39°, CU, CRMX							80232458
i-3 Wash POI, RGBW4K, Asym, CU, CRMX							80232459
i-3 Wash POI, RGBW4K, 11°, GR, AirGlow							80232466
i-3 Wash POI, RGBW4K, 29°, GR, AirGlow							80232467
i-3 Wash POI, RGBW4K, 12x39°, GR, AirGlow							80232468
i-3 Wash POI, RGBW4K, Asym, GR, AirGlow							80232469
i-3 Wash POI, RGBW4K, 8.5°, CU, AirGlow							80232475
i-3 Wash POI, RGBW4K, 11°, CU, AirGlow							80232476
i-3 Wash POI, RGBW4K, 29°, CU, AirGlow							80232477
i-3 Wash POI, RGBW4K, 12x39°, CU, AirGlow							80232478
i-3 Wash POI, RGBW4K, Asym, CU, AirGlow							80232479
i-3 Wash POI, RGBW3K, 8.5°, GR, DMX							80232505
i-3 Wash POI, RGBW3K, 11°, GR, DMX							80232506
i-3 Wash POI, RGBW3K, 29°, GR, DMX							80232507
i-3 Wash POI, RGBW3K, 12x39°, GR, DMX							80232508
i-3 Wash POI, RGBW3K, Asym, GR, DMX							80232509
i-3 Wash POI, RGBW3K, 8.5°, CU, DMX							80232515
i-3 Wash POI, RGBW3K, 11°, CU, DMX							80232516
i-3 Wash POI, RGBW3K, 29°, CU, DMX							80232517
i-3 Wash POI, RGBW3K, 12x39°, CU, DMX							80232518
i-3 Wash POI, RGBW3K, Asym, CU, DMX							80232519
i-3 Wash POI, RGBW3K, 8.5°, GR, Ethernet							80232525
i-3 Wash POI, RGBW3K, 11°, GR, Ethernet							80232526
i-3 Wash POI, RGBW3K, 29°, GR, Ethernet							80232527
i-3 Wash POI, RGBW3K, 12x39°, GR, Ethernet							80232528
i-3 Wash POI, RGBW3K, Asym, GR, Ethernet							80232529
i-3 Wash POI, RGBW3K, 8.5°, CU, Ethernet							80232535
i-3 Wash POI, RGBW3K, 11°, CU, Ethernet							80232536
i-3 Wash POI, RGBW3K, 29°, CU, Ethernet							80232537
i-3 Wash POI, RGBW3K, 12x39°, CU, Ethernet							80232538
i-3 Wash POI, RGBW3K, Asym, CU, Ethernet							80232539
i-3 Wash POI, RGBW3K, 8.5°, GR, CRMX							80232545
i-3 Wash POI, RGBW3K, 11°, GR, CRMX							80232546
i-3 Wash POI, RGBW3K, 29°, GR, CRMX							80232547
i-3 Wash POI, RGBW3K, 12x39°, GR, CRMX							80232548
i-3 Wash POI, RGBW3K, Asym, GR, CRMX							80232549
i-3 Wash POI, RGBW3K, 8.5°, CU, CRMX							80232555
i-3 Wash POI, RGBW3K, 11°, CU, CRMX							80232556
i-3 Wash POI, RGBW3K, 29°, CU, CRMX							80232557
i-3 Wash POI, RGBW3K, 12x39°, CU, CRMX							80232558
i-3 Wash POI, RGBW3K, Asym, CU, CRMX							80232559
i-3 Wash POI, RGBW3K, 8.5°, GR, AirGlow							80232565
i-3 Wash POI, RGBW3K, 11°, GR, AirGlow							80232566
i-3 Wash POI, RGBW3K, 29°, GR, AirGlow							80232567
i-3 Wash POI, RGBW3K, 12x39°, GR, AirGlow							80232568
i-3 Wash POI, RGBW3K, Asym, GR, AirGlow							80232569
i-3 Wash POI, RGBW3K, 8.5°, CU, AirGlow							80232575
i-3 Wash POI, RGBW3K, 11°, CU, AirGlow							80232576
i-3 Wash POI, RGBW3K, 29°, CU, AirGlow							80232577
i-3 Wash POI, RGBW3K, 12x39°, CU, AirGlow							80232578
i-3 Wash POI, RGBW3K, Asym, CU, AirGlow							80232579
i-3 Wash POI, RGBW4K, 60°, CU, DMX							80232615
i-3 Wash POI, RGBW4K, 10x60°, CU, DMX							80232616
i-3 Wash POI, RGBW4K, 60°, CU, Ethernet							80232635
i-3 Wash POI, RGBW4K, 10x60°, CU, Ethernet							80232636
i-3 Wash POI, RGBW4K, 60°, CU, CRMX							80232655
i-3 Wash POI, RGBW4K, 10x60°, CU, CRMX							80232656
i-3 Wash POI, RGBW4K, 60°, CU, AirGlow							80232675
i-3 Wash POI, RGBW4K, 10x60°, CU, AirGlow							80232676
i-3 Wash POI, RGBW3K, 60°, GR, DMX							80232705
i-3 Wash POI, RGBW3K, 10x60°, GR, DMX							80232706
i-3 Wash POI, RGBW3K, 60°, CU, DMX							80232715
i-3 Wash POI, RGBW3K, 10x60°, CU, DMX							80232716
i-3 Wash POI, RGBW3K, 60°, GR, Ethernet							80232725
i-3 Wash POI, RGBW3K, 10x60°, GR, Ethernet							80232726
i-3 Wash POI, RGBW3K, 60°, CU, Ethernet							80232735
i-3 Wash POI, RGBW3K, 10x60°, CU, Ethernet							80232736
i-3 Wash POI, RGBW3K, 60°, GR, CRMX							80232745
i-3 Wash POI, RGBW3K, 10x60°, GR, CRMX							80232746
i-3 Wash POI, RGBW3K, 60°, CU, CRMX							80232755
i-3 Wash POI, RGBW3K, 10x60°, CU, CRMX							80232756
i-3 Wash POI, RGBW3K, 60°, GR, AirGlow							80232765
i-3 Wash POI, RGBW3K, 10x60°, GR, AirGlow							80232766
i-3 Wash POI, RGBW3K, 60°, CU, AirGlow							80232775
i-3 Wash POI, RGBW3K, 10x60°, CU, AirGlow							80232776
