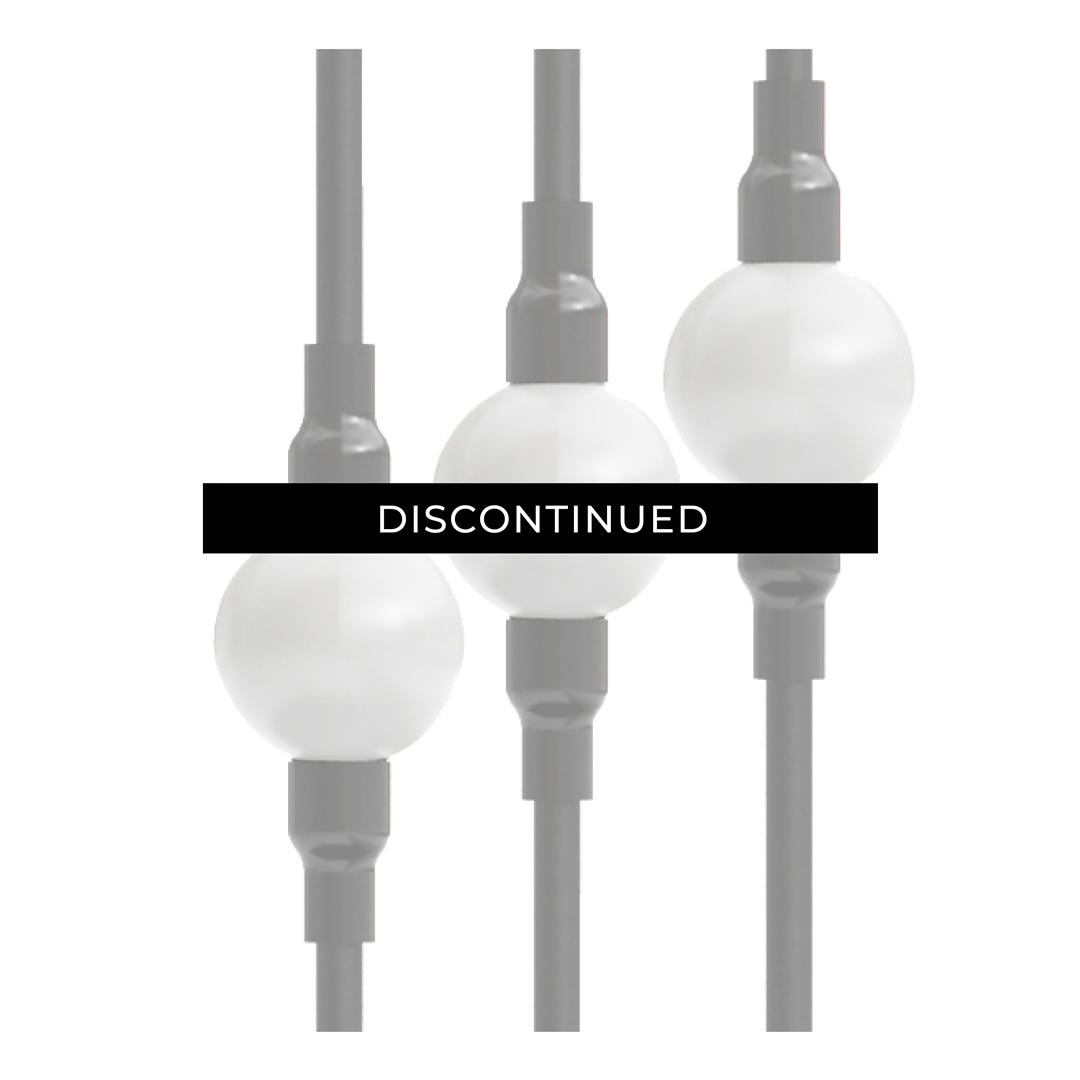

LB·100

LED Technology

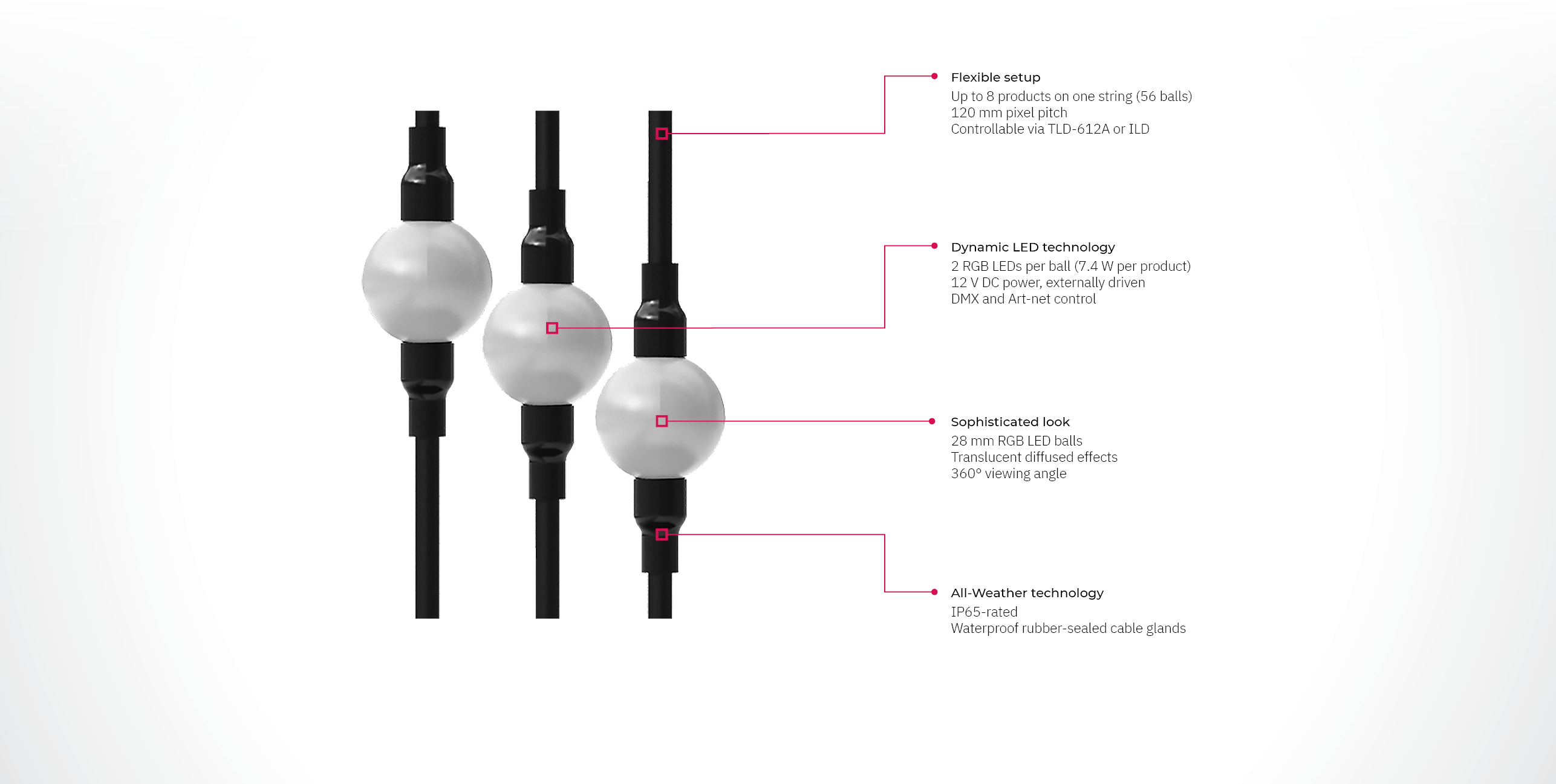

Each LB-100 product contains seven white LED balls with a diameter of 28 mm. Each ball mounts a 2W RGB LED. In order to configure and control up to six strings of linked balls, a SGM TLD-612A or ILD driver is needed. The LEDs expected lifetime is 50,000 hours hours.

Control
The LB-100 can be operated by TLD-612A or ILD drivers. An entire system can be controlled via DMX-512A, a dedicated video server, or an ordinary PC with ArtNet™(the ArtNet signal is then distributed by a third party ArtNet to DMX Converter).

Software
To setup the full configuration of the LB-100, SGM offers the ArtNet Configurator, an extremely powerful software. The ArtNet Configurator offers the possibility of configuring ArtNet and DMX-512A to fit the selected controlling system when using TLD-612A or ILD drivers with LB-100 units. This software is also compatible with the SGM A-4 ArtNet to DMX converter.

IP rating
The durable IP65-rating of the LB-100 ensures that the units are kept free of externally induced particles and liquids, such as smoke fluid, dust, dirt, airborne pollution, and humidity. It is ideal for outdoor applications, while being practically maintenance-free makes it a sustainable and long-lasting choice for indoor events and installations.

Mounting options
Up to six LB-100 input connectors can be directly wired to a TLD-612A, and those can be hung with regular clamps or just be attached to a surface. Each LB-100 output can be connected to a new LB-100. Up to eight LB-100 (56 LED balls) can be connected in one single string, which means that up to 48 LB-100 (336 LED balls) can be controlled by one single TLD-612A driver. Each LB-100 string can extend to a maximum length of 6.8 meters. Since the LB-100 cable is flexible, the balls can be hung in almost any position.
