- Up to 511 lumen at 4000K calibrated white
- RGBW quad-chip LED with 3000K and 4000K white options
- Factory colour-calibrated ensuring colour consistency
- Integrated wireless DMX and AirGlow options
- Built-in power supply
- Made with recycled aluminium
This thermal management techonology provides Advaced Temperature Control monitored via sensors and software, keeping optimal LED junction temperatures, and ensuring maximum reliability for long-term use. The ThermalDriveTM system includes cutting-edge heat removal via passive thermal tecniques and active forced-air cooling (depending on the product), specifically designed to maintain LED efficiency while extending fixture's lifetime.
SGM's TruColorTM luminaires use an enhanced color engine that improves accuracy and consistency both for color mixing and low-end dimming, while using the same procedures to match the SGM color palette.
DynaMix® is the latest version of the SGM calibrated color engine. It is a new scalable drive design which brings an unprecedented level of output to all new SGM Light products by increasing the output of mixed colors and whites through a combination of firmware and hardware. LED engines with DynaMix can utilize the full power capacity of a power source when using combinations of drive channels. What does this mean? Essentially a huge boost in output. With DynaMix each SGM fixture is capable of much greater output, maximizing efficiency and budget.
Designer selectable algorithm for advanced color path control, allowing any mixed RGB value to hold a specific color point in the spectrum by modifying the color temperature data. Color filter emulation presets react to color temperature adjustments when this color path is selected. All products featuring the next-gen VersaPathTM color engine also include the standard SGM proprietary color mixing algorithm.

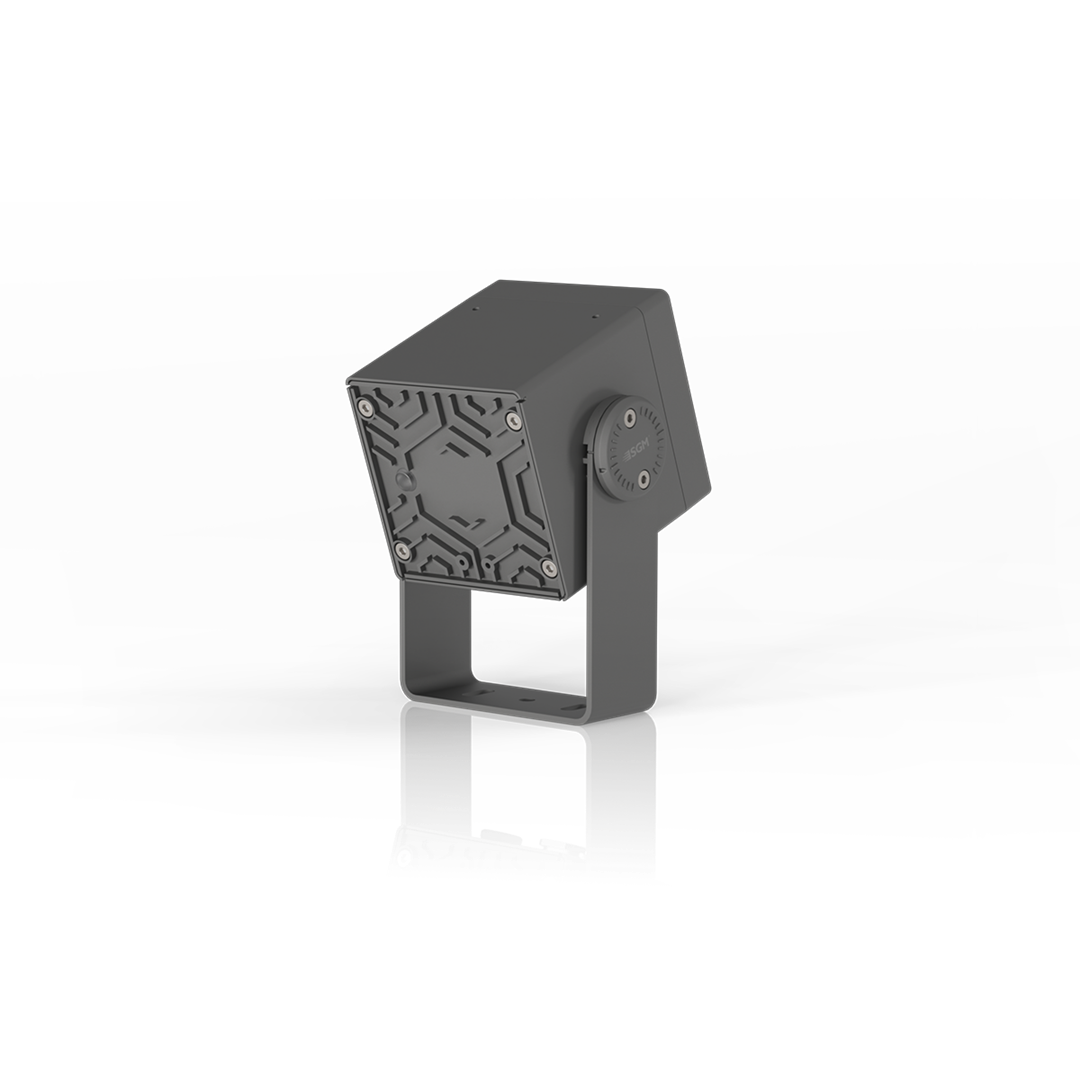

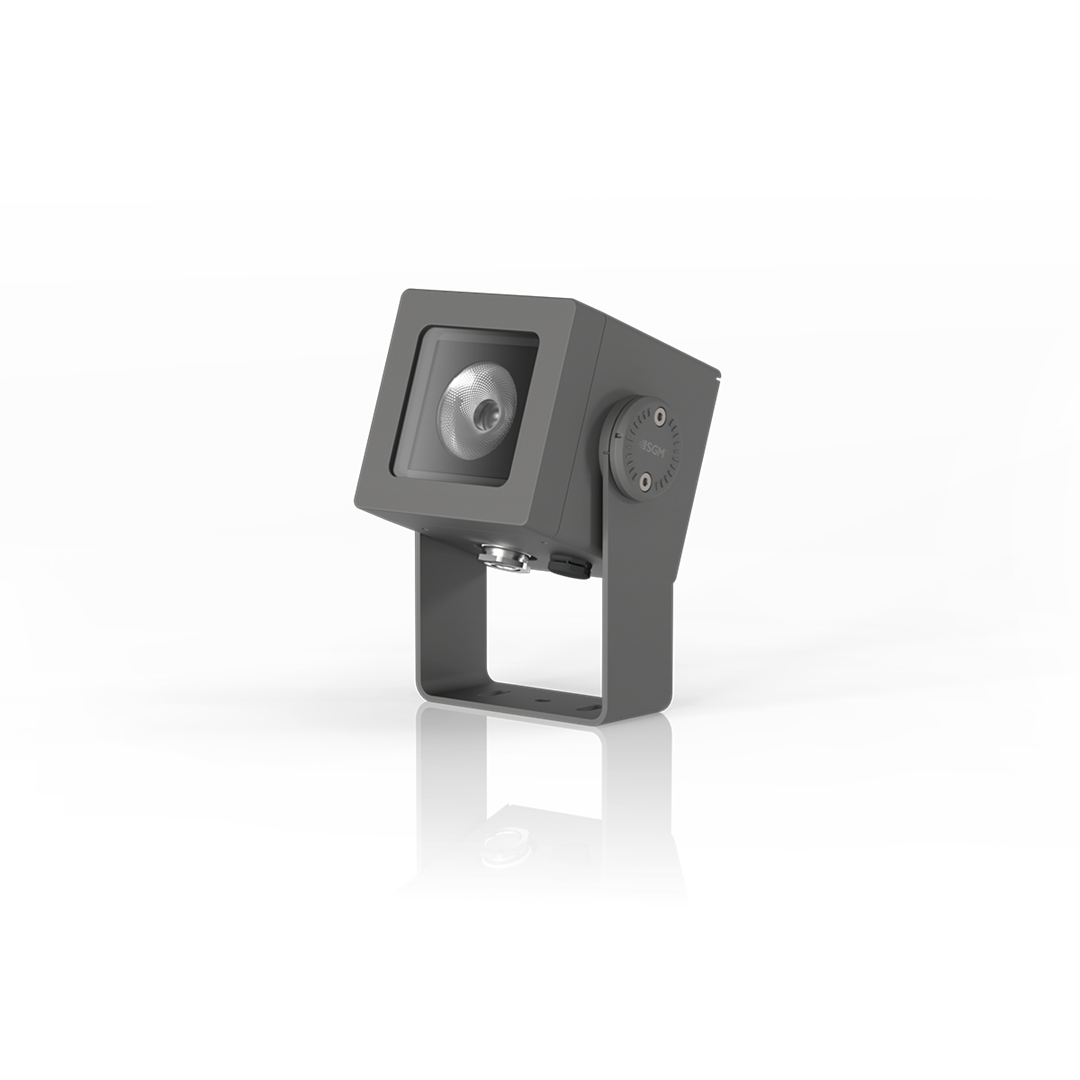

The POI-15 Wash is the smallest fixture of SGM’s POI family—built-to-last and easy-to-install fixtures designed to withstand any outdoor environment. With five fixture sizes, multiple lens options, integrated control, built-in power, and glare accessories, the POI family offers versatile, configurable solutions for projects of any scale. Every POI fixture is factory colour-calibrated, ensuring colour consistency in both multi-colour and white mixes across all products in the POI family.
Specification
| Optical Data | |
|---|---|
| LED expected lifetime (L70) | 150.000 hours (Projected, under manufacturer's conditions) |
| Lightsource | RGBW3K (quad-chip) |
| RGBW4K (quad-chip) | |
| Native lens options | 35° |
| 25° | |
| 10° | |
| 100° | |
| 60° | |
| 10x60° | |
| 60x10° | |
| Optional filters | POI-15 Wash Diffuser |
| Photometric | |
| CRI | Up to 80 |
| Efficacy | 34 lm/W |
| Light output - all on | 511 lm @ 4000K calibrated |
| Light output - blue | 66 lm |
| Light output - green | 340 lm |
| Light output - red | 166 lm |
| Physical | |
| Color options | Custom color - Any RAL |
| Grey - RAL 7037 | |
| Corrosion class | C5 (ISO 12944) |
| IK rating | IK08 |
| IP class | IP66 |
| Lens material | Tempered glass front |
| Material | Aluminium |
| Plastic | |
| Stainless steel | |
| Recycled aluminium | |
| Net dimensions L x H x W | 108.6 x 149 x 95 mm |
| Net dimensions L x H x W (inches) | 4.3 x 5.9 x 3.7 inches |
| Net weight | 1 kg (2.2 lbs) |
| Vibration Rating | 3G (Optional) |
| Electrical | |
| Input voltage, nominal | 100 - 277 VAC; 50 / 60 Hz |
| Max power consumption | 15 W |
| Programming and Control | |
| Protocol | CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S |
| USITT DMX512A | |
| RDM ANSI E1.20 | |
| Lumenradio AirGlow™ | |
| Setting and addressing | RDM ANSI E1.20 |
| Standalone mode | Quick Color |
| Connections | |
| DMX data in/out | 1.5 meter cable for DMX In and DMX Thru |
| Power | Power cable 1.5m with bare ends |
| Thermal | |
| Cooling | Passive |
| Temperature range, operating | -40°C to 50°C |
| Temperature range, operating max | 50 °C |
| Temperature range, operating min | -40 °C |
| Temperature range, start-up | -20°C to 50°C |
| Temperature range, storage | -40°C to 80°C |
| Total heat dissipation, max power | 51.2 BTU per hour |
| Included items | |
| Included items | POI-15 Wash Diffuser |
Download
-
Firmware
-
Software
-
DMX Charts
-
Illustrations
-
Photometrics
- SGM POI-15 Wash RGBW3K 100deg LM-79 Photometrics (Rev A).zip
- SGM POI-15 Wash RGBW3K 10deg LM-79 Photometrics (Rev A).zip
- SGM POI-15 Wash RGBW3K 10x60deg LM-79 Photometrics (Rev A).zip
- SGM POI-15 Wash RGBW3K 25deg LM-79 Photometrics (Rev A).zip
- SGM POI-15 Wash RGBW3K 35deg LM-79 Photometrics (Rev A).zip
- SGM POI-15 Wash RGBW3K 60deg LM-79 Photometrics (Rev A).zip
- SGM POI-15 Wash RGBW3K 60x10deg LM-79 Photometrics (Rev A).zip
- SGM POI-15 Wash RGBW4K 100deg LM-79 Photometrics (Rev A).zip
- SGM POI-15 Wash RGBW4K 10deg LM-79 Photometrics (Rev A).zip
- SGM POI-15 Wash RGBW4K 10x60deg LM-79 Photometrics (Rev A).zip
- SGM POI-15 Wash RGBW4K 25deg LM-79 Photometrics (Rev A).zip
- SGM POI-15 Wash RGBW4K 35deg LM-79 Photometrics (Rev A).zip
- SGM POI-15 Wash RGBW4K 60deg LM-79 Photometrics (Rev A).zip
- SGM POI-15 Wash RGBW4K 60x10deg LM-79 Photometrics (Rev A).zip
-
User Manual and Specifications
Certifications & classifications
Ordering information
| Product name | Item number | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Filter: | |||||||||
| POI-15 Wash, RGBW4K, 10°, GR, DMX | 80300000 | ||||||||
| POI-15 Wash, RGBW4K, 25°, GR, DMX | 80300001 | ||||||||
| POI-15 Wash, RGBW4K, 35°, GR, DMX | 80300002 | ||||||||
| POI-15 Wash, RGBW4K, 60°, GR, DMX | 80300003 | ||||||||
| POI-15 Wash, RGBW4K, 100°, GR, DMX | 80300004 | ||||||||
| POI-15 Wash, RGBW4K, 10x60°, GR, DMX | 80300005 | ||||||||
| POI-15 Wash, RGBW4K, 60x10°, GR, DMX | 80300006 | ||||||||
| POI-15 Wash, RGBW4K, 10°, GR, CRMX | 80300007 | ||||||||
| POI-15 Wash, RGBW4K, 25°, GR, CRMX | 80300008 | ||||||||
| POI-15 Wash, RGBW4K, 35°, GR, CRMX | 80300009 | ||||||||
| POI-15 Wash, RGBW4K, 60°, GR, CRMX | 80300010 | ||||||||
| POI-15 Wash, RGBW4K, 100°, GR, CRMX | 80300011 | ||||||||
| POI-15 Wash, RGBW4K, 10x60°, GR, CRMX | 80300012 | ||||||||
| POI-15 Wash, RGBW4K, 60x10°, GR, CRMX | 80300013 | ||||||||
| POI-15 Wash, RGBW4K, 10°, GR, AirGlow | 80300014 | ||||||||
| POI-15 Wash, RGBW4K, 25°, GR, AirGlow | 80300015 | ||||||||
| POI-15 Wash, RGBW4K, 35°, GR, AirGlow | 80300016 | ||||||||
| POI-15 Wash, RGBW4K, 60°, GR, AirGlow | 80300017 | ||||||||
| POI-15 Wash, RGBW4K, 100°, GR, AirGlow | 80300018 | ||||||||
| POI-15 Wash, RGBW4K, 10x60°, GR, AirGlow | 80300019 | ||||||||
| POI-15 Wash, RGBW4K, 60x10°, GR, AirGlow | 80300020 | ||||||||
| POI-15 Wash, RGBW3K, 10°, GR, DMX | 80300021 | ||||||||
| POI-15 Wash, RGBW3K, 25°, GR, DMX | 80300022 | ||||||||
| POI-15 Wash, RGBW3K, 35°, GR, DMX | 80300023 | ||||||||
| POI-15 Wash, RGBW3K, 60°, GR, DMX | 80300024 | ||||||||
| POI-15 Wash, RGBW3K, 100°, GR, DMX | 80300025 | ||||||||
| POI-15 Wash, RGBW3K, 10x60°, GR, DMX | 80300026 | ||||||||
| POI-15 Wash, RGBW3K, 60x10°, GR, DMX | 80300027 | ||||||||
| POI-15 Wash, RGBW3K, 10°, GR, CRMX | 80300028 | ||||||||
| POI-15 Wash, RGBW3K, 25°, GR, CRMX | 80300029 | ||||||||
| POI-15 Wash, RGBW3K, 35°, GR, CRMX | 80300030 | ||||||||
| POI-15 Wash, RGBW3K, 60°, GR, CRMX | 80300031 | ||||||||
| POI-15 Wash, RGBW3K, 100°, GR, CRMX | 80300032 | ||||||||
| POI-15 Wash, RGBW3K, 10x60°, GR, CRMX | 80300033 | ||||||||
| POI-15 Wash, RGBW3K, 60x10°, GR, CRMX | 80300034 | ||||||||
| POI-15 Wash, RGBW3K, 10°, GR, AirGlow | 80300035 | ||||||||
| POI-15 Wash, RGBW3K, 25°, GR, AirGlow | 80300036 | ||||||||
| POI-15 Wash, RGBW3K, 35°, GR, AirGlow | 80300037 | ||||||||
| POI-15 Wash, RGBW3K, 60°, GR, AirGlow | 80300038 | ||||||||
| POI-15 Wash, RGBW3K, 100°, GR, AirGlow | 80300039 | ||||||||
| POI-15 Wash, RGBW3K, 10x60°, GR, AirGlow | 80300040 | ||||||||
| POI-15 Wash, RGBW3K, 60x10°, GR, AirGlow | 80300041 | ||||||||
| Accessories | Item number |
|---|---|
| POI-15 Wash Half Anti-glare Shield | 83063106 |
| POI-15 Wash Full Anti-glare Shield | 83063107 |
| POI-15 Wash Diffuser | 83063117 |
