This thermal management techonology provides Advaced Temperature Control monitored via sensors and software, keeping optimal LED junction temperatures, and ensuring maximum reliability for long-term use. The ThermalDriveTM system includes cutting-edge heat removal via passive thermal tecniques and active forced-air cooling (depending on the product), specifically designed to maintain LED efficiency while extending fixture's lifetime.
SGM's TruColorTM luminaires use an enhanced color engine that improves accuracy and consistency both for color mixing and low-end dimming, while using the same procedures to match the SGM color palette.
SGM's integrated patented Dehumidification process eliminates humidity and breaks down corrosive molecules deriving from polluted air to avoid destructive corrosion. Inbuilt dehumidifiers constantly remove trapped hydrogen from inside of the lighting fixture in a solid estate electrolytic process with no moving parts. The DryTechTM procedure is also based on a Ingress Protection rating of 65 or 66 (depending on the fixture), intended as a full protection against dust and other particles, while ensuring protection against direct water jets.
DynaMix® is the latest version of the SGM calibrated color engine. It is a new scalable drive design which brings an unprecedented level of output to all new SGM Light products by increasing the output of mixed colors and whites through a combination of firmware and hardware. LED engines with DynaMix can utilize the full power capacity of a power source when using combinations of drive channels. What does this mean? Essentially a huge boost in output. With DynaMix each SGM fixture is capable of much greater output, maximizing efficiency and budget.

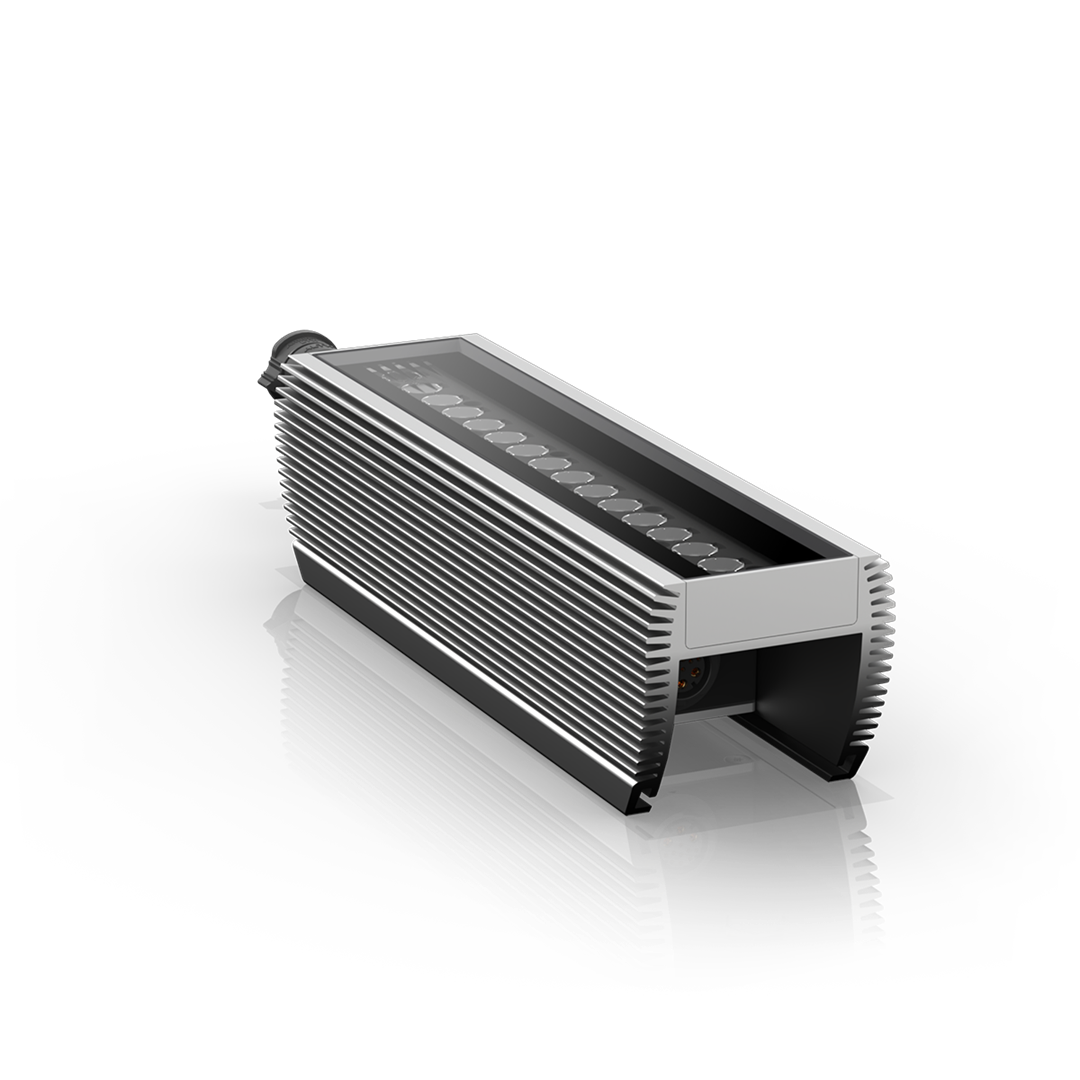

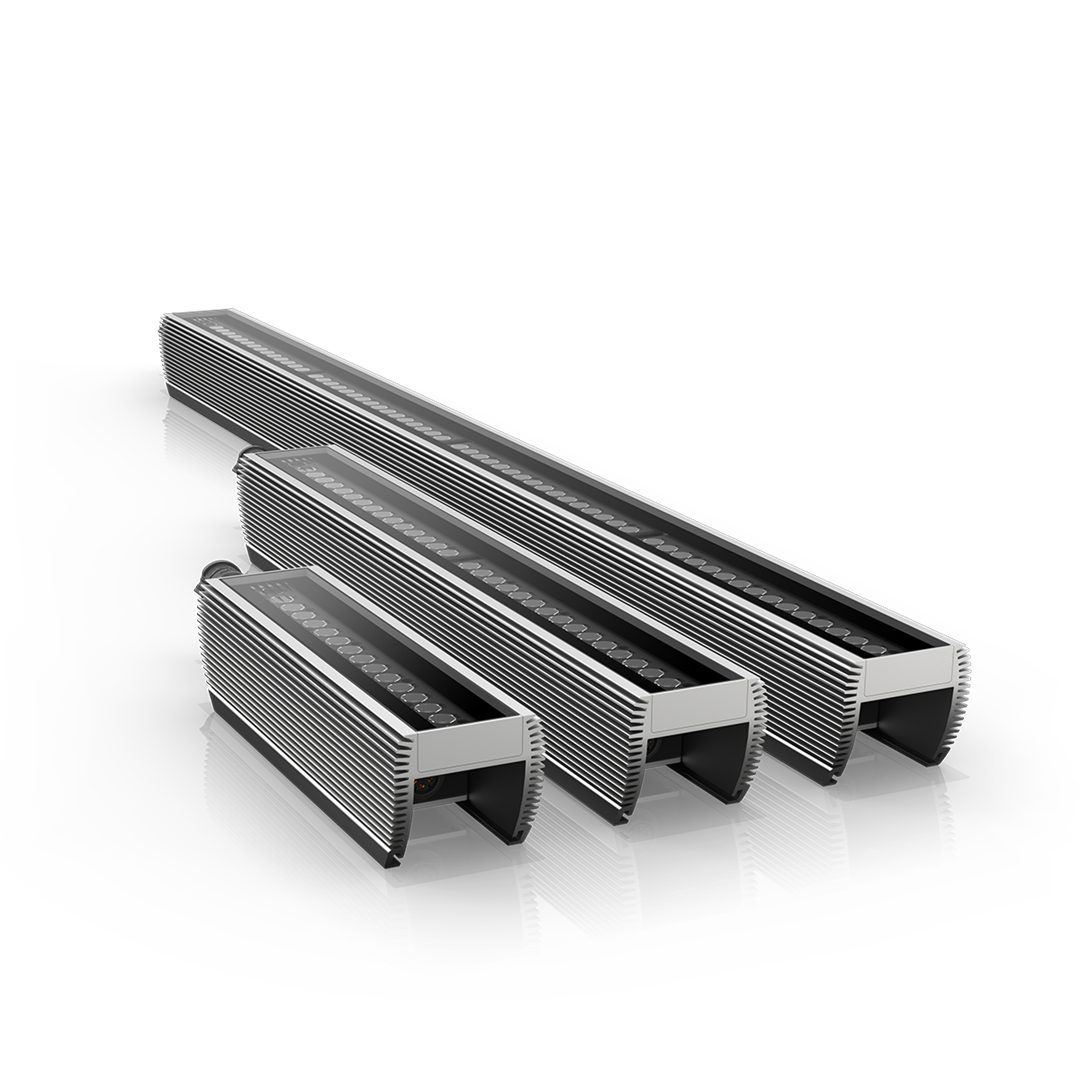

Specification
| Optical Data | |
|---|---|
| LED expected lifetime (L70) | 50,000 hours |
| Lens diameter | 16.1 mm |
| Lightsource | Individual Color LED Matrix |
| RGBW3K | |
| RGBW4K | |
| Native lens options | 8.5° |
| 11° | |
| 29° | |
| 60° | |
| 10x33° | |
| 13x38° Asymmetric | |
| 10x60° | |
| Physical | |
| Color options | Custom color - Any RAL |
| AluGrey | |
| Corrosion class | C5 (ISO 12944:2018) |
| Effective Projected Area | 0.26 Square ft |
| IK rating | IK09 |
| IP class | IP66 |
| Lens material | Tempered glass front |
| Material | Aluminium |
| Net dimensions L x H x W | 305 x 81.2 x 87 mm |
| Net dimensions L x H x W (inches) | 12 x 3.2 x 3.4 inches |
| Net weight | 2.9 kg (6.4 lbs) |
| Vibration Rating | 3G |
| Features | |
| Color calibration | SGM proprietary with Dynamic Drive |
| Dehumidifier | Head |
| Remote monitoring | Yes (Real Time) |
| Electrical | |
| Electrical protection | Overload protection with automatic recover |
| Input voltage, nominal | 120 - 277 VAC; 50 / 60 Hz |
| Max inrush current 230VAC | 50 A |
| Max power consumption | 20 W |
| Power Supply Unit | Inbuilt IP 67 Auto-ranging electronic switch-mode |
| Standby power consumption | 1 W |
| Programming and Control | |
| 16-bit control | Dimmer, Red, Green, Blue, White |
| Data distribution | SGM Power and Data Joiner |
| DMX channels | 3, 4, 6, 8, 10 |
| DMX modes | 6 |
| Protocol | USITT DMX512A |
| RDM ANSI E1.20 | |
| Setting and addressing | i-1 Configuration Tool |
| Connections | |

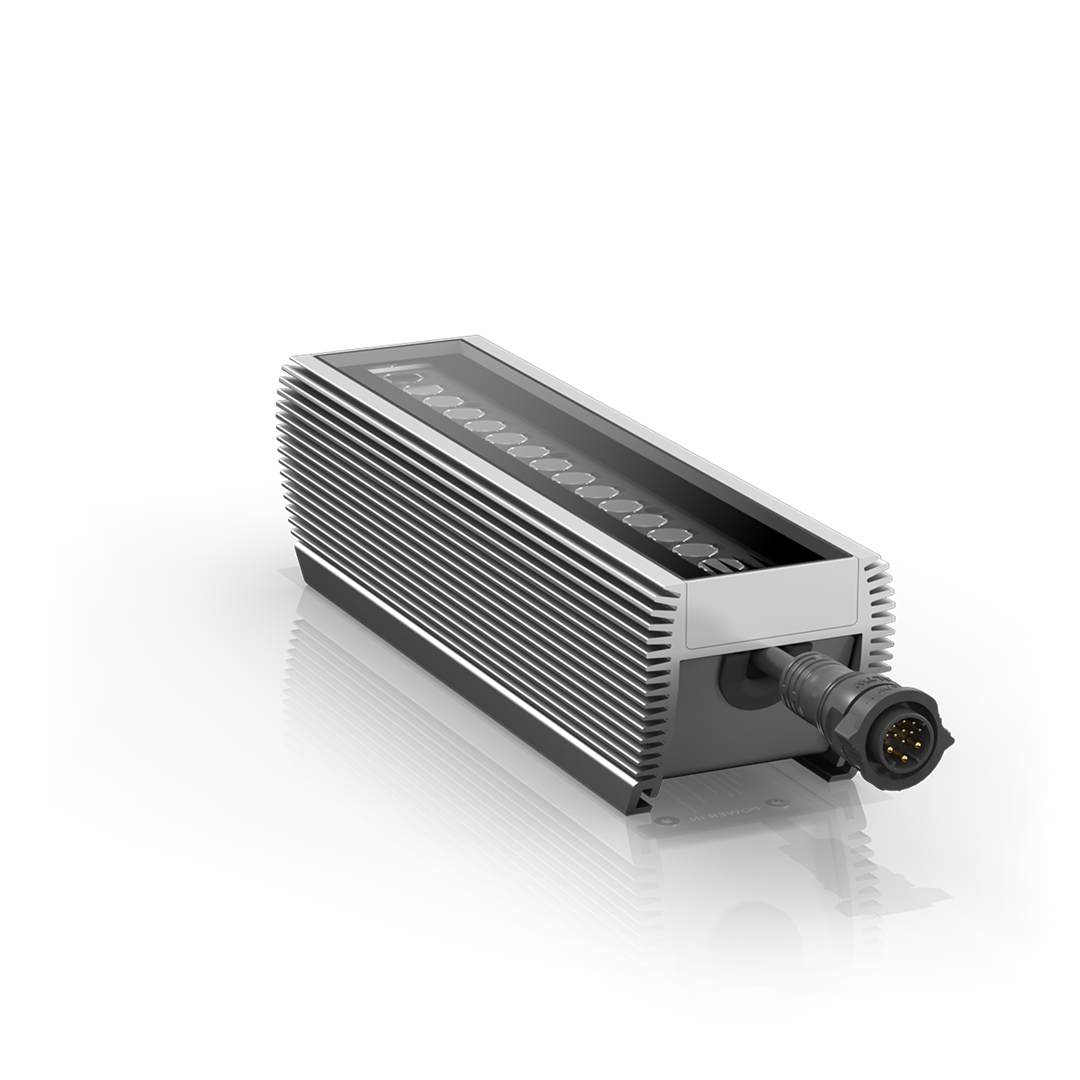

| Data / Power input | Cable with 3+9 pin X-Lok connector IP68 |
| Data / Power output | 3+9 pin X-Lok connector IP68 |
| Installation | |
| Mounting point | Sliding mounting clamp in any location (1 set of mounting clamps incl. per product) |
| Orientation | Any |
| Thermal | |
| Cooling | Passive |
| Humidity (max.) | 98 % |
| Temperature range, operating | -40°C to 50°C |
| Temperature range, operating max | 50 °C |
| Temperature range, operating min | -40 °C |
| Temperature range, start-up | -20°C to 50°C |
| Temperature range, storage | -40°C to 80°C |
| Thermal protection | Automatic overtemperature protection |
| Total heat dissipation, max power | 68.2 BTU per hour |
| Total heat dissipation, standby | 3.4 BTU per hour |
| Conforms To | |
| CE - 2014/30/EU: EMC Directive | EN 55015 |
| EN 61547 | |
| EN 61000-3-2 | |
| EN 61000-3-3 | |
| EN 55024 | |
| EN 55032 | |
| EN 55035 | |
| CE - 2014/35/EU: Low Voltage Directive | EN 60598-1 |
| EN 62471 | |
| EN 60529 | |
| UL | UL Std. 1598 |
| Certified To | |
| CSA | CSA Std. C22.2 No. 250.0 |
Download
-
Firmware
-
Software
-
Revit® files
-
Certificate
-
DMX Charts
-
Illustrations
- 80050500_i-1 Linear_1ft_3D.dxf
- 80050500_i-1_Linear_1ft.step
- 80050500_i-1_Linear_1ft.x_t
- 80050501_i-1 Linear_2ft.dxf
- 80050501_i-1 Linear_2ft.step
- 80050501_i-1 Linear_2ft.x_t
- 80050501_i-1 Linear_2ft_3D.dxf
- 80050502_i-1 Linear_4ft.dxf
- 80050502_i-1 Linear_4ft.step
- 80050502_i-1 Linear_4ft.x_t
- 80050502_i-1 Linear_4ft_3D.dxf
- SGM i-1 Dimension_Drawing.pdf
-
Photometrics
- SGM i-1 L RGBW3K 1foot 10x33deg LM-79 Photometrics (Rev A).zip
- SGM i-1 L RGBW3K 1foot 10x60deg LM-79 Photometrics (Rev A).zip
- SGM i-1 L RGBW3K 1foot 11deg LM-79 Photometrics (Rev A).zip
- SGM i-1 L RGBW3K 1foot 29deg LM-79 Photometrics (Rev A).zip
- SGM i-1 L RGBW3K 1foot 60deg LM-79 Photometrics (Rev A).zip
- SGM i-1 L RGBW3K 1foot 8.5deg LM-79 Photometrics (Rev A).zip
- SGM i-1 L RGBW3K 1foot Asym LM-79 Photometrics (Rev A).zip
- SGM i-1 L RGBW4K 1foot 10x33deg LM-79 Photometrics (Rev C).zip
- SGM i-1 L RGBW4K 1foot 10x60deg LM-79 Photometrics (Rev C).zip
- SGM i-1 L RGBW4K 1foot 11deg LM-79 Photometrics (Rev C).zip
- SGM i-1 L RGBW4K 1foot 29deg LM-79 Photometrics (Rev C).zip
- SGM i-1 L RGBW4K 1foot 60deg LM-79 Photometrics (Rev C).zip
- SGM i-1 L RGBW4K 1foot 8.5deg LM-79 Photometrics (Rev C).zip
- SGM i-1 L RGBW4K 1foot Asym LM-79 Photometrics (Rev C).zip
-
User Manual and Specifications
Certifications & classifications
.png&width=90&height=75)
Ordering information
| Product name | Item number |
|---|---|
| i-1 L, 1ft, RGBW3K, 8.5°, POI, AG | 80050752 |
| i-1 L, 1ft, RGBW3K, 11°, POI, AG | 80050755 |
| i-1 L, 1ft, RGBW4K, 11°, POI, AG | 80050500 |
| i-1 L, 1ft, RGBW4K, 8.5°, POI, AG | 80050506 |
| i-1 L, 1ft, RGBW3K, 29°, POI, AG | 80050758 |
| i-1 L, 1ft, RGBW3K, 60°, POI, AG | 80050761 |
| i-1 L, 1ft, RGBW3K, 10x33°, POI, AG | 80050764 |
| i-1 L, 1ft, RGBW3K, 10x60°, POI, AG | 80050767 |
| i-1 L, 1ft, RGBW3K, Asym, POI, AG | 80050770 |
| i-1 L, 1ft, RGBW3K, 8.5°, POI, CU | 80050794 |
| i-1 L, 1ft, RGBW3K, 11°, POI, CU | 80050797 |
| i-1 L, 1ft, RGBW3K, 29°, POI, CU | 80050800 |
| i-1 L, 1ft, RGBW3K, 60°, POI, CU | 80050803 |
| i-1 L, 1ft, RGBW3K, 10x33°, POI, CU | 80050806 |
| i-1 L, 1ft, RGBW3K, 10x60°, POI, CU | 80050809 |
| i-1 L, 1ft, RGBW3K, Asym, POI, CU | 80050812 |
| i-1 L, 1ft, RGBW4K, 10x60°, POI, AG | 80050518 |
| i-1 L, 1ft, RGBW4K, 29°, POI, AG | 80050509 |
| i-1 L, 1ft, RGBW4K, 60°, POI, AG | 80050512 |
| i-1 L, 1ft, RGBW4K, 10x33°, POI, AG | 80050515 |
| i-1 L, 1ft, RGBW4K, Asym, POI, AG | 80050521 |
| i-1 L, 1ft, RGBW4K, 8.5°, POI, CU | 80050584 |
| i-1 L, 1ft, RGBW4K, 11°, POI, CU | 80050587 |
| i-1 L, 1ft, RGBW4K, 29°, POI, CU | 80050590 |
| i-1 L, 1ft, RGBW4K, 60°, POI, CU | 80050593 |
| i-1 L, 1ft, RGBW4K, 10x33°, POI, CU | 80050596 |
| i-1 L, 1ft, RGBW4K, 10x60°, POI, CU | 80050599 |
| i-1 L, 1ft, RGBW4K, Asym, POI, CU | 80050602 |
| Accessories | Item number |
|---|---|
| SGM USB uploader cable, POI | 83062067 |
| i-1/P-1 Linear Adjustable Wall Mount Short | 83060502 |
| i-1/P-1 Linear Adjustable Wall Mount Long | 83060504 |
| i-1/P-1 Linear Adjustable Surface Mount | 83060505 |
| i-1/P-1 Linear Mounting Clamp | 83060506 |
| Anti-glare shield, i-1/P-1 Linear 1ft. | 83060500 |
| PDM - Power & Data Manager | 80070240 |
| POI Power and Data Extension Cable (1m) | 83062070 |
| POI Y-split Power Insertion Cable | 83062077 |
| POI Power and Data Extension Cables (5m) | 83062072 |
| POI Power and Data Leader Cable (10m) | 83062074 |
| POI Power and Data Leader Cable (2.5m) | 83062073 |
| POI Power and Data Extension Cable (2.5m) | 83062071 |
