- Quick adjustment via M-10 screws
- Standard mounting system for all SGM POI products

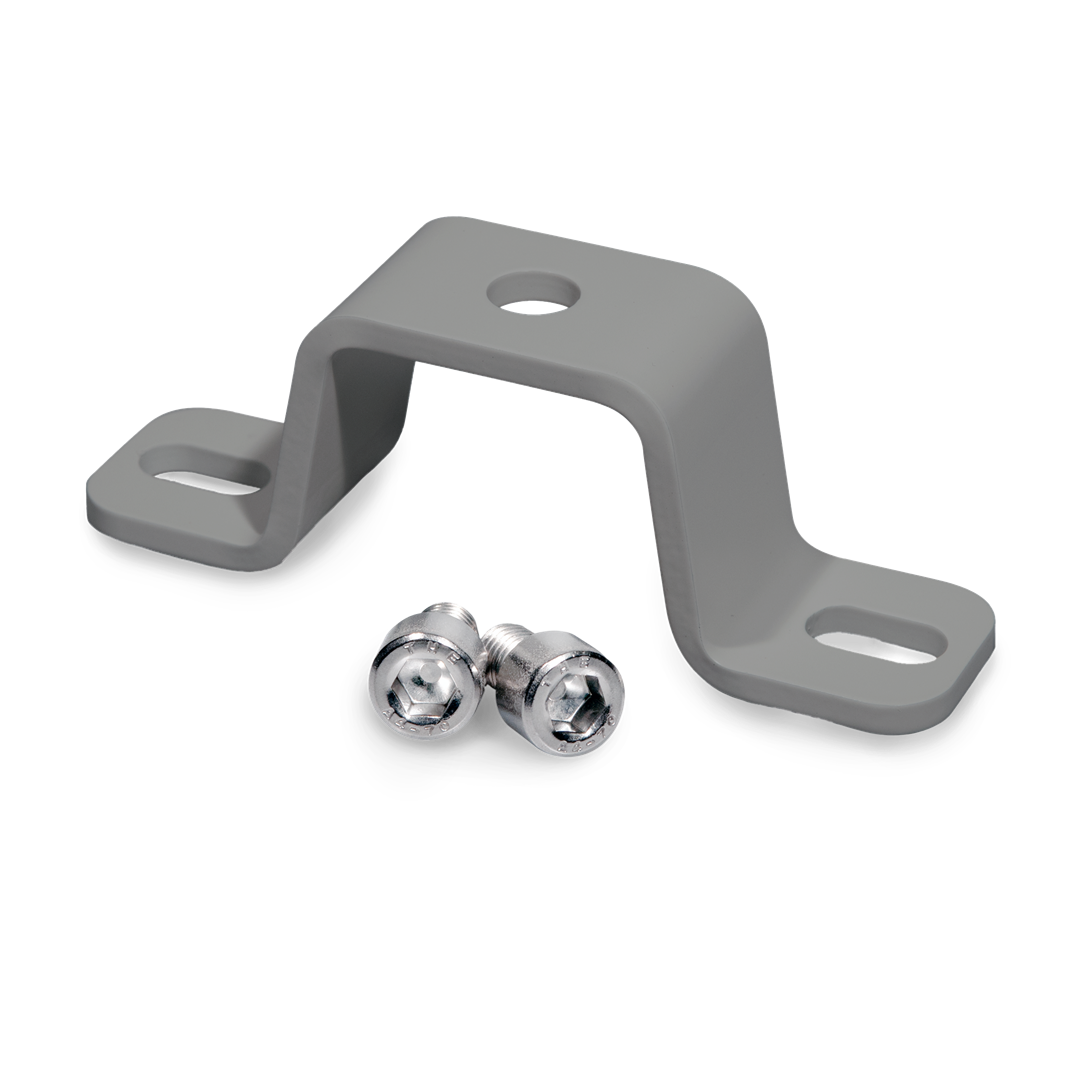

The POI Omega Bracket is a stainless steel anti-corrosion mounting solution intended for fastening a wide range of SGM POI lighting fixtures to a surface. Multiple clamps can be attached to this bracket for permanent installation.
Item no. Omega Bracket POI (Black color; RAL 9004 ): 83060623
Item no. Omega Bracket POI (White color, RAL 9010): 83060624
Item no. Omega Bracket POI (Custom color, Any RAL): 83060625
Specification
| Physical | |
|---|---|
| Color options | Black - RAL 9004 |
| Custom color - Any RAL | |
| White - RAL 9010 | |
| Corrosion class | C5 (ISO 12944:2018) |
| Material | Stainless steel |
| Net dimensions L x H x W (imperial) | 5.4 x 1.8 x 1.4 inches |
| Net dimensions L x H x W (metric) | 137 x 45 x 35 mm |
| Net weight | 0.3 kg (0.7 lbs) |
| Installation | |
| Orientation | Any |
| Rigging possibilities | 13mm / 0.5in hole diameter for locking point attachment |
| Safety features | Designed to withstand 260Kg without deformation, when locked in fixture's base. |
Certifications & classifications
Ordering information
| Product name | Item number |
|---|---|
| Omegabracket POI with M10 Screws, BL | 83060623 |
| Omegabracket POI with M10 Screws, CU | 83060625 |
| Omegabracket POI with M10 screws, GR | 83060642 |
