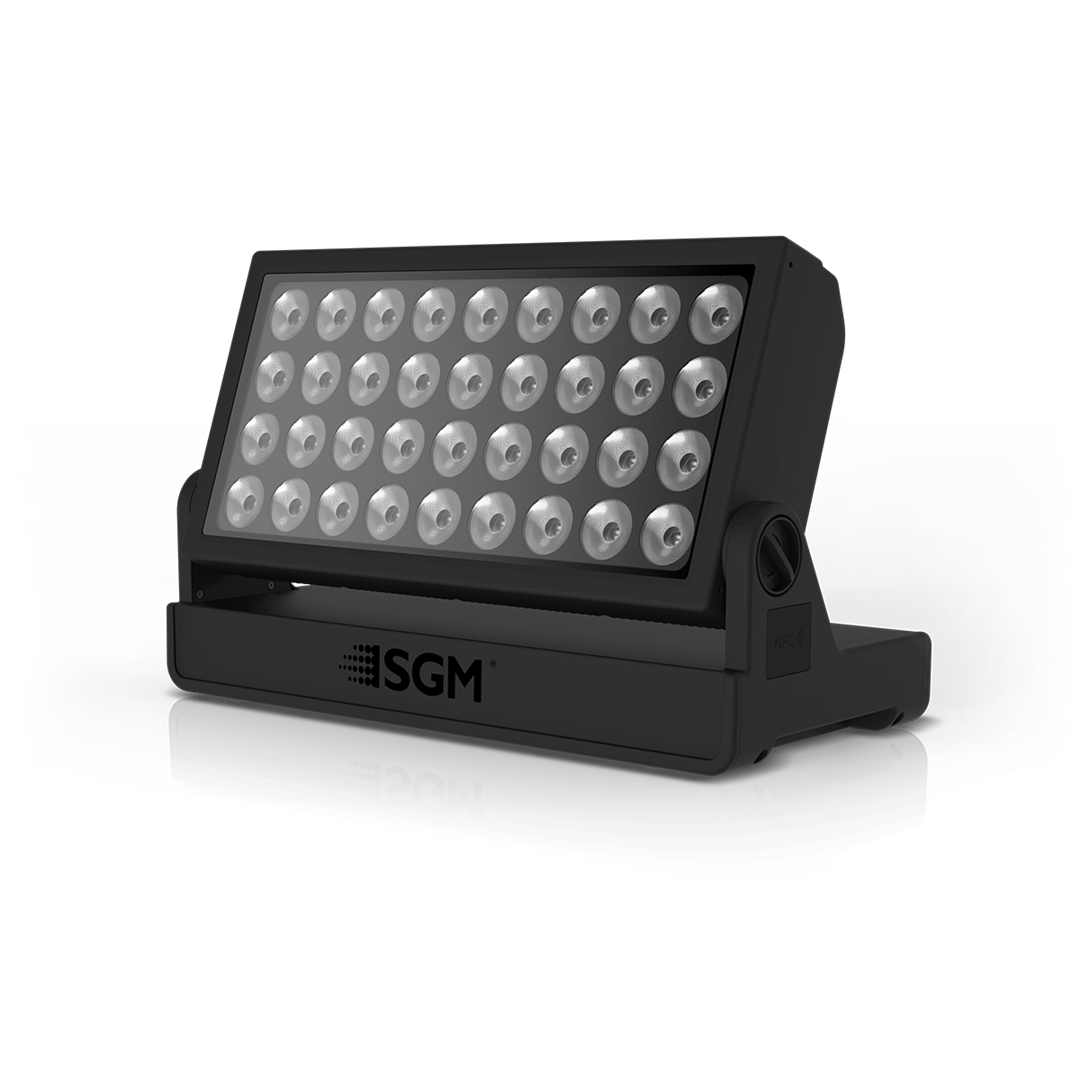

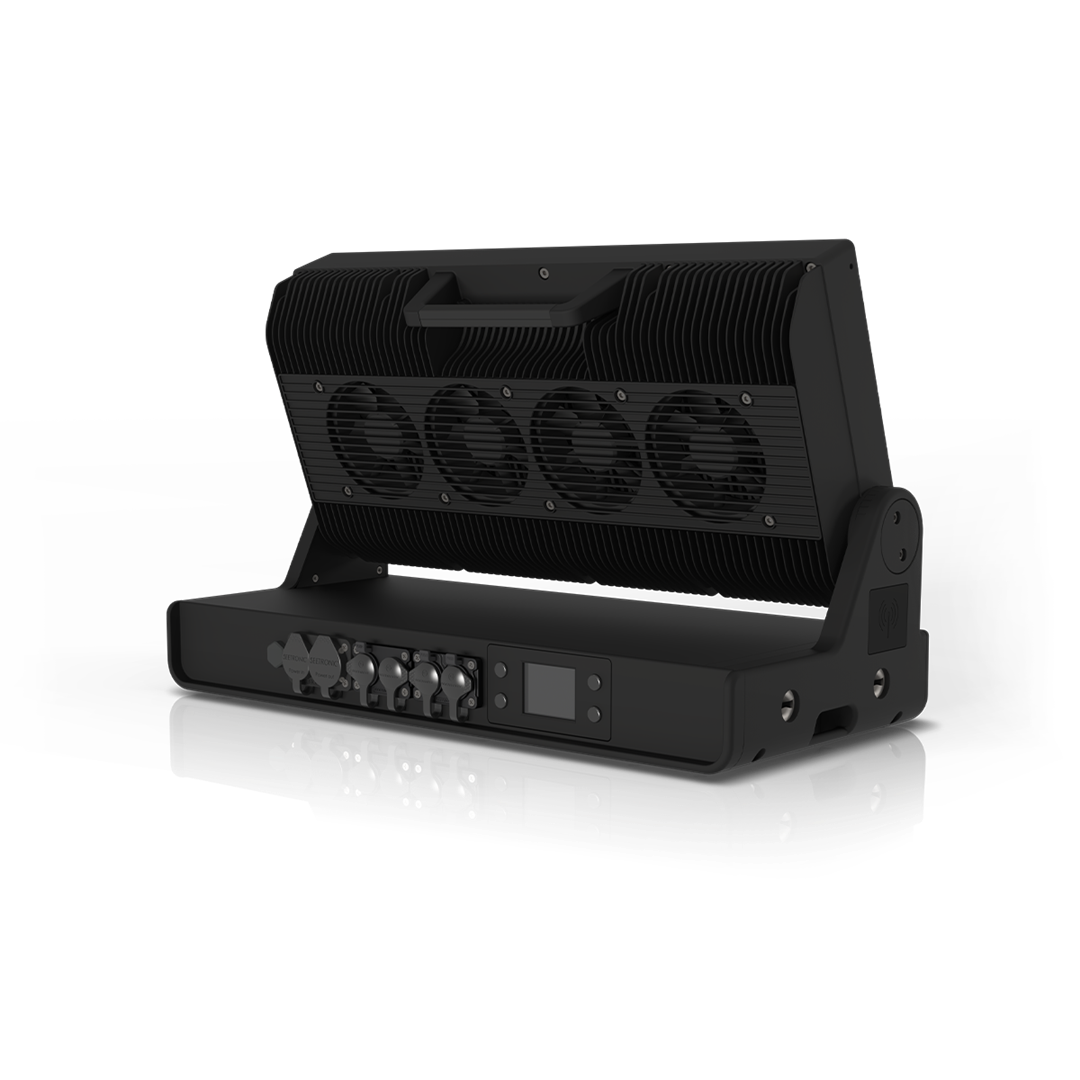

PALCO-6 Wash

Versatile, foldable, high output, color-changing wash light.

Housing colors

Black RAL 9004

Info shortcuts

Powerful 40W RGBL LED with ColorBoost™ technology
CRI 85+ (calibrated at 5600K CCT)
IP65-rated for outdoor use
DMX, RDM, ArtNet & sACN via 5-pin XLR and Ethernet
Integrated LumenRadio Wireless CRMX
NFC setup with proprietary iOS & Android app

This thermal management techonology provides Advaced Temperature Control monitored via sensors and software, keeping optimal LED junction temperatures, and ensuring maximum reliability for long-term use. The ThermalDriveTM system includes cutting-edge heat removal via passive thermal tecniques and active forced-air cooling (depending on the product), specifically designed to maintain LED efficiency while extending fixture's lifetime.

All luminaires featuring this technology include all the TruColorTM capabilities, plus high color rendering (CRI / TLCI / CQS 90+) when using all RGB or RGBAM LEDs to achieve high-output dynamic whites. SGM's TruColor+TM luminaires use an enhanced color engine that improves accuracy and consistency both for color mixing and low-end dimming, while using the same procedures to match the SGM color palette.

Designer selectable algorithm for advanced color path control, allowing any mixed RGB value to hold a specific color point in the spectrum by modifying the color temperature data. Color filter emulation presets react to color temperature adjustments when this color path is selected. All products featuring the next-gen VersaPathTM color engine also include the standard SGM proprietary color mixing algorithm.

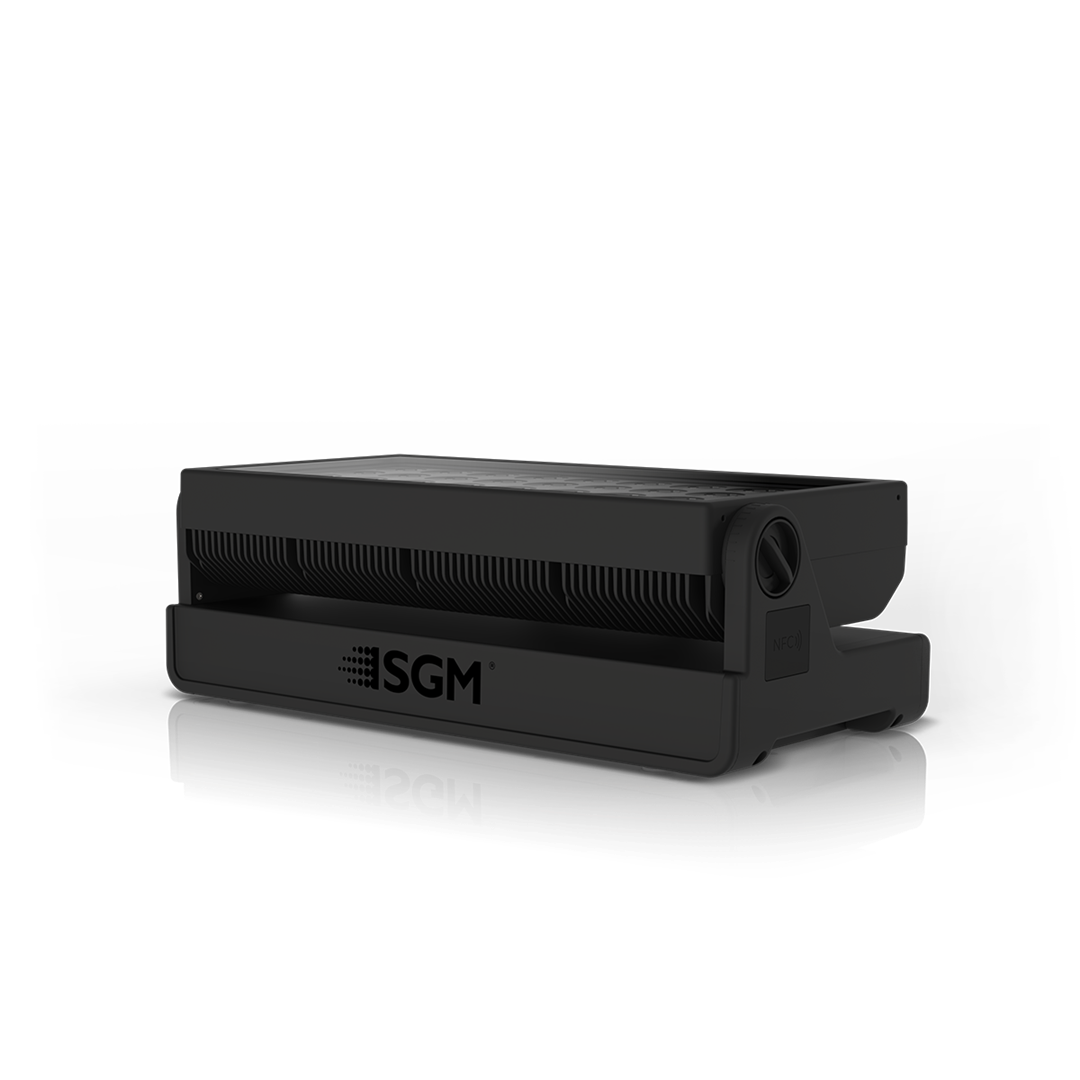

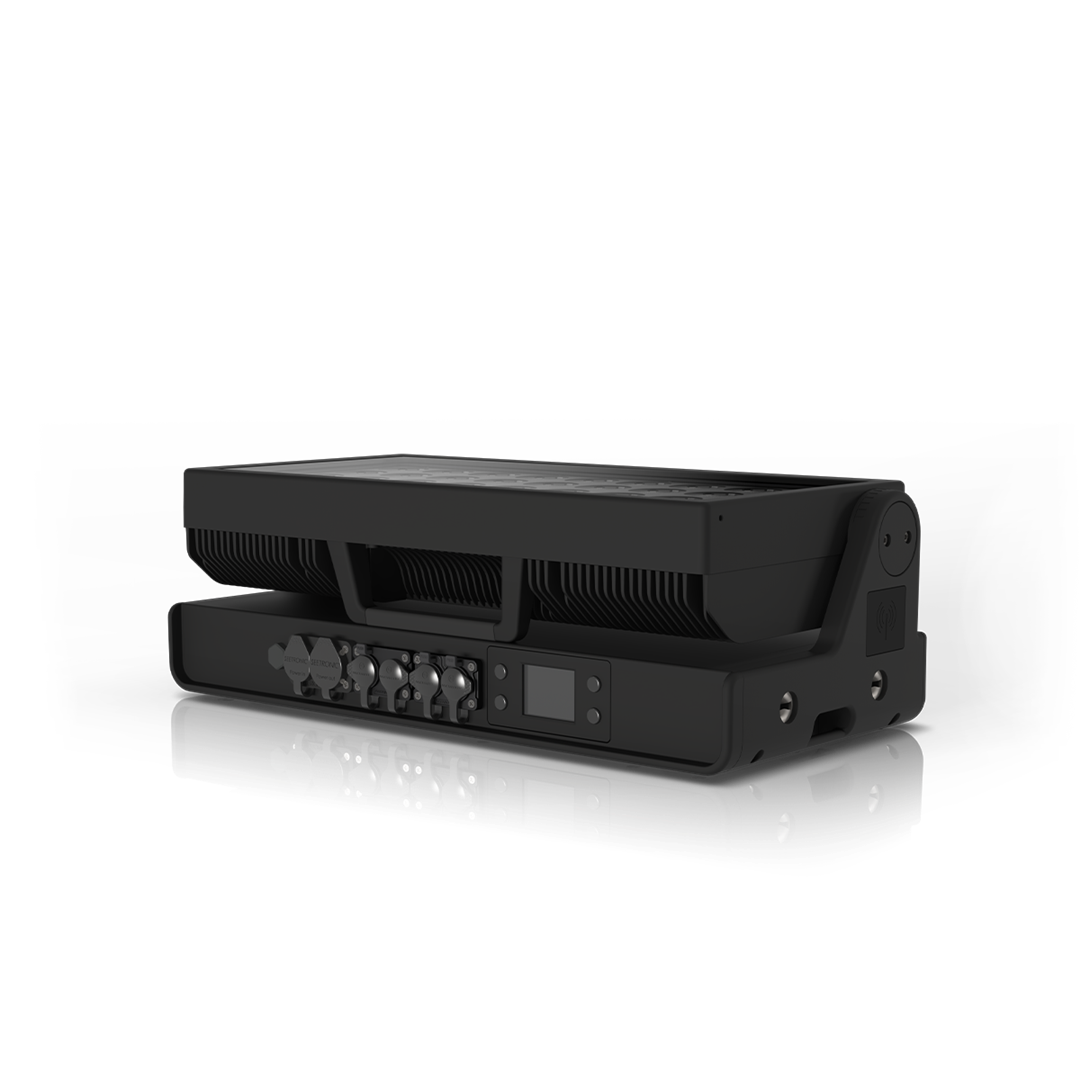

Versatile, foldable, and built for performance.

The PALCO-6 Wash strikes the perfect balance between output, size, and flexibility making it the go-to fixture for rental houses and event designers. Its foldable design makes it easy to transport, set up, and store, helping reduce logistics costs and setup times.

Powered by RGBL LEDs with Color Boost Technology, it delivers high color rendering across the full CCT range. Add filters or barndoors for precise light control and creative freedom.

Specification

Optical Data
Dominant wavelength (λd) - blue	typical 452 nm*
Dominant wavelength (λd) - green	typical 527 nm*
Dominant wavelength (λd) - red	typical 625 nm*
LED expected lifetime (L70)	50,000 hours
Lightsource	36 X High Output RGBL LEDs
Optional filters	Wall Wash Filter, PALCO
	Scrim Filter, PALCO
	Narrow - 20° Green, PALCO
	Medium - 45° Red, PALCO
	Wide - 80° Blue, PALCO
	10x60° Horizontal - Orange, PALCO
	60x10° Vertical - Yellow, PALCO
Photometric
Average CQS (CTC)	89
Average RF / TM-30-15 (CTC)	84
Color temperature range	2000K - 10000K
Efficacy	42.7 lm/W
Light output - all on	33357
Light output - blue	2311 lm
Light output - green	15714 lm
Light output - red	6824 lm
Lux @ 10m	5008 lux
Lux @ 3m	55645 lux
Lux @ 5m	20032 lux
Max. CRI @ 5600K	81
Max. TLCI @ 5600K	80
Native beam angle(s)	11°
Native field angle(s)	24°
Physical
Color options	Black - RAL 9004
IK rating	IK06
IP class	IP65
Lens material	PMMA
Material	Plastic
	Stainless steel
	Tempered Glass
	Recycled aluminium
Net dimensions L x H x W (imperial)	19.6 x 12.5 x 9.1 inches
Net dimensions L x H x W (metric)	498 x 318 x 232 mm
Net weight	13 kg (28.7 lbs)
Electrical
Input voltage (nominal)	100 - 240 VAC; 50 / 60 Hz
Max inrush current 230VAC	50 A
Max power consumption	850 W
Max power thru @ 100 V	8.4 A
Max power thru @ 230 V	3.6 A
Power factor	0.981 PF (230 V)
Standby power consumption	25 W
Thermal
Cooling	Active, Forced Air, Temperature-regulated
Humidity (max.)	98 %
Temperature range, operating	-20°C to 50°C
Temperature range, start-up	-20°C to 50°C
Temperature range, storage	-20°C to 50°C
Total heat dissipation, max power	2900.2 BTU per hour
Total heat dissipation, standby	85.3 BTU per hour
Included items
Included items	2 Omega bracket with quater-turn fasteners
