- Ultra-compact, IP54-rated beam moving light with a 120mm front lens
- 95W RGBL single source with 2°–33° motorized zoom for a refined midair beam effect
- Kaleidoscope prism effect and continuous pan/tilt rotation
- Connects into the GENIO system with tool-free rigging connectors
- Built-in NFC for quick setup and configuration

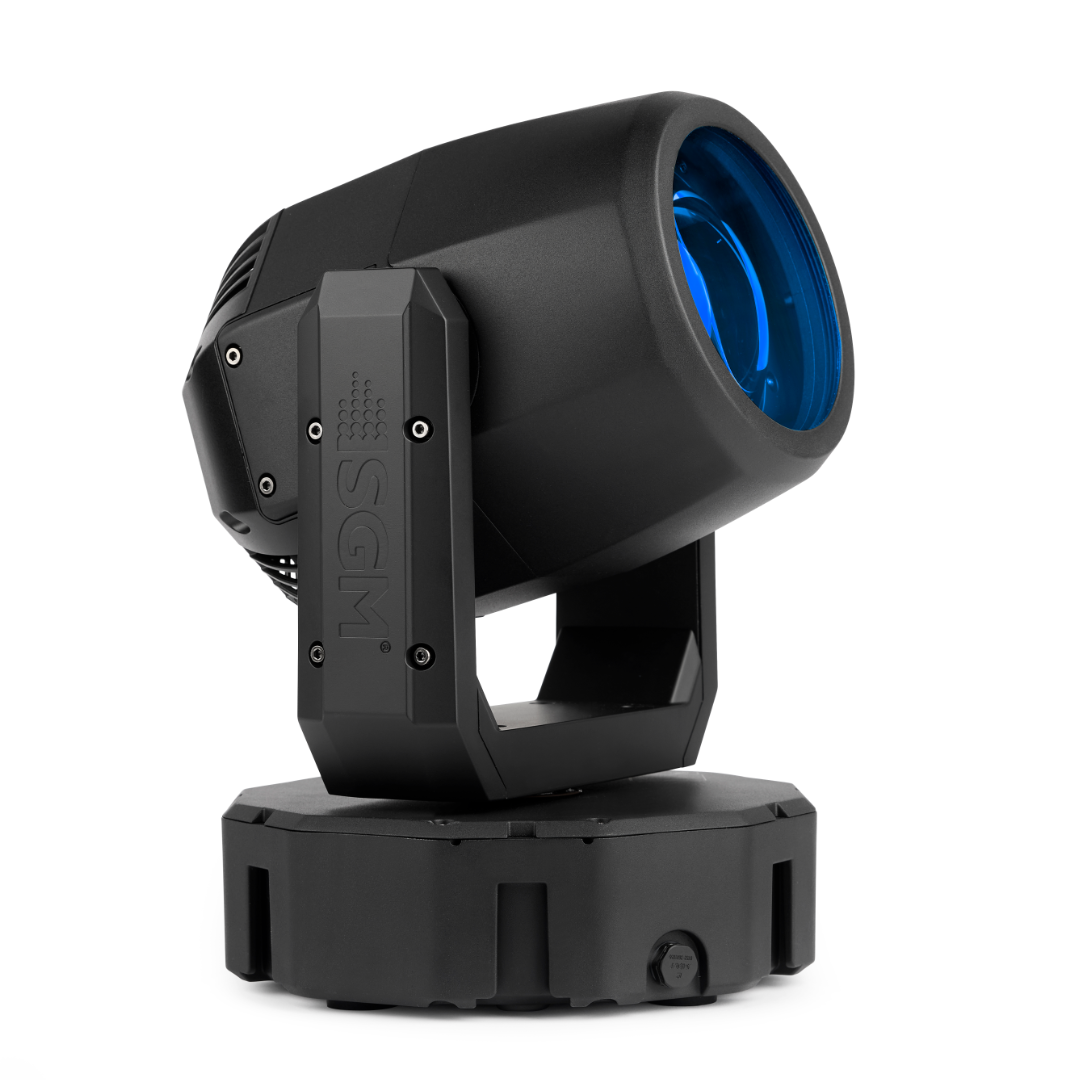

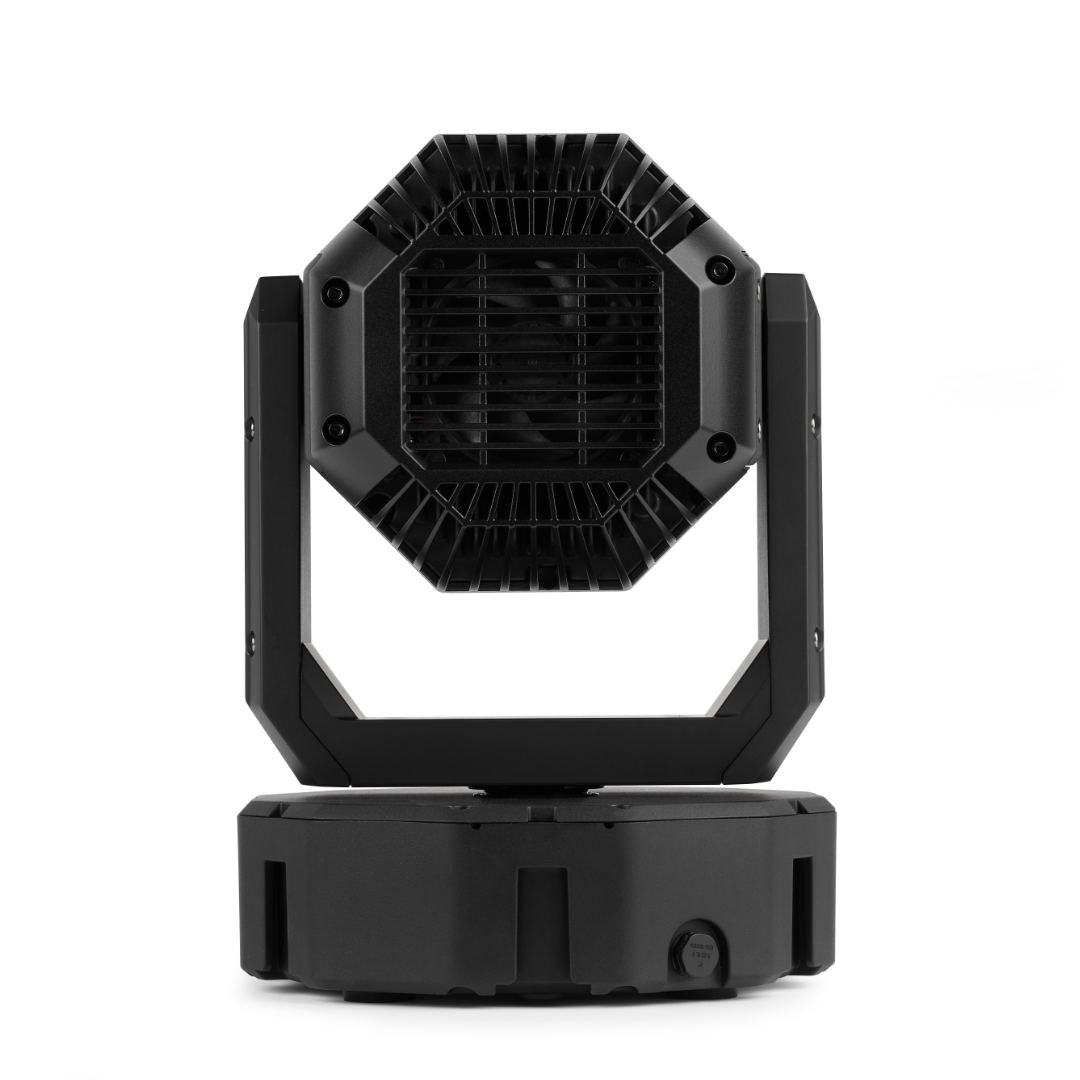

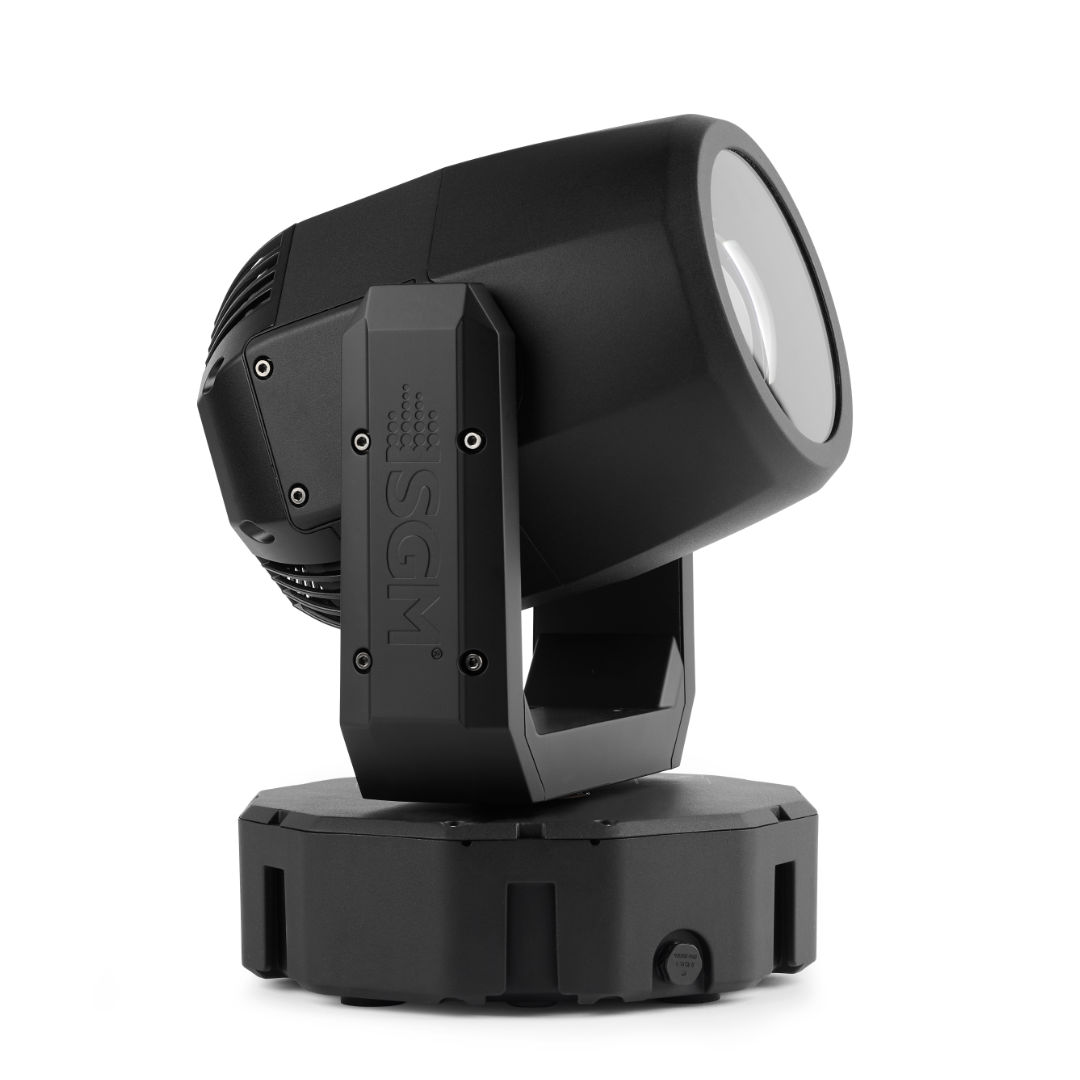

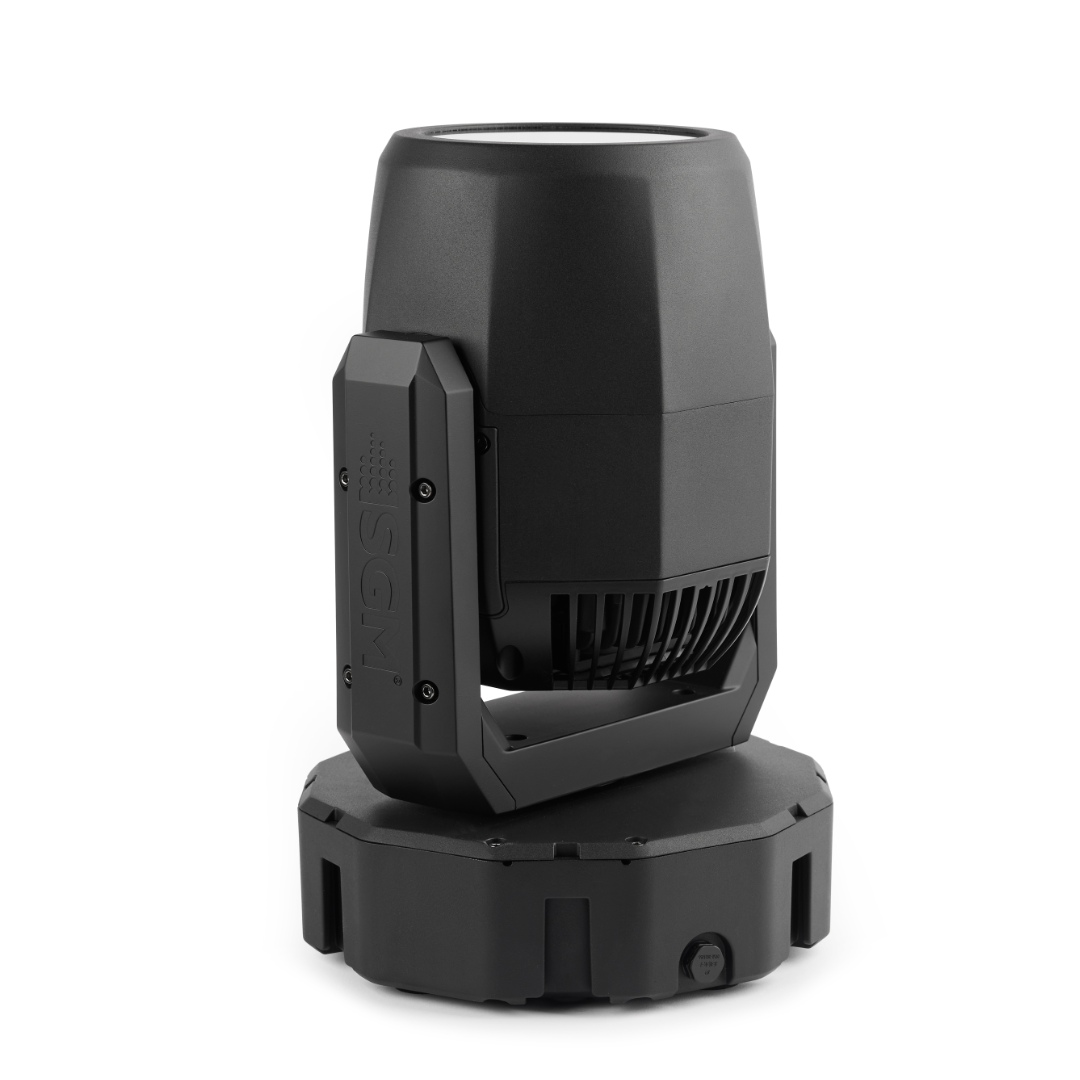

GENIO Beam is the compact moving-beam fixture at the foundation of the GENIO system — a 95W RGBL engine, 2°–33° zoom and a refined midair beam effect, connecting into the full GENIO family through SGM's tool-free rigging connectors.
GENIO Beam brings structure to the GENIO system. This ultra-compact beam moving light is built around a 120mm front lens and a 95W RGBL single source, delivering 1,200lm / 35,000lx at 5m from a small footprint.
A fast, precise 2°–33° motorized zoom shapes a refined midair beam effect, while the kaleidoscope prism effect and continuous pan/tilt rotation add texture and movement to any design.

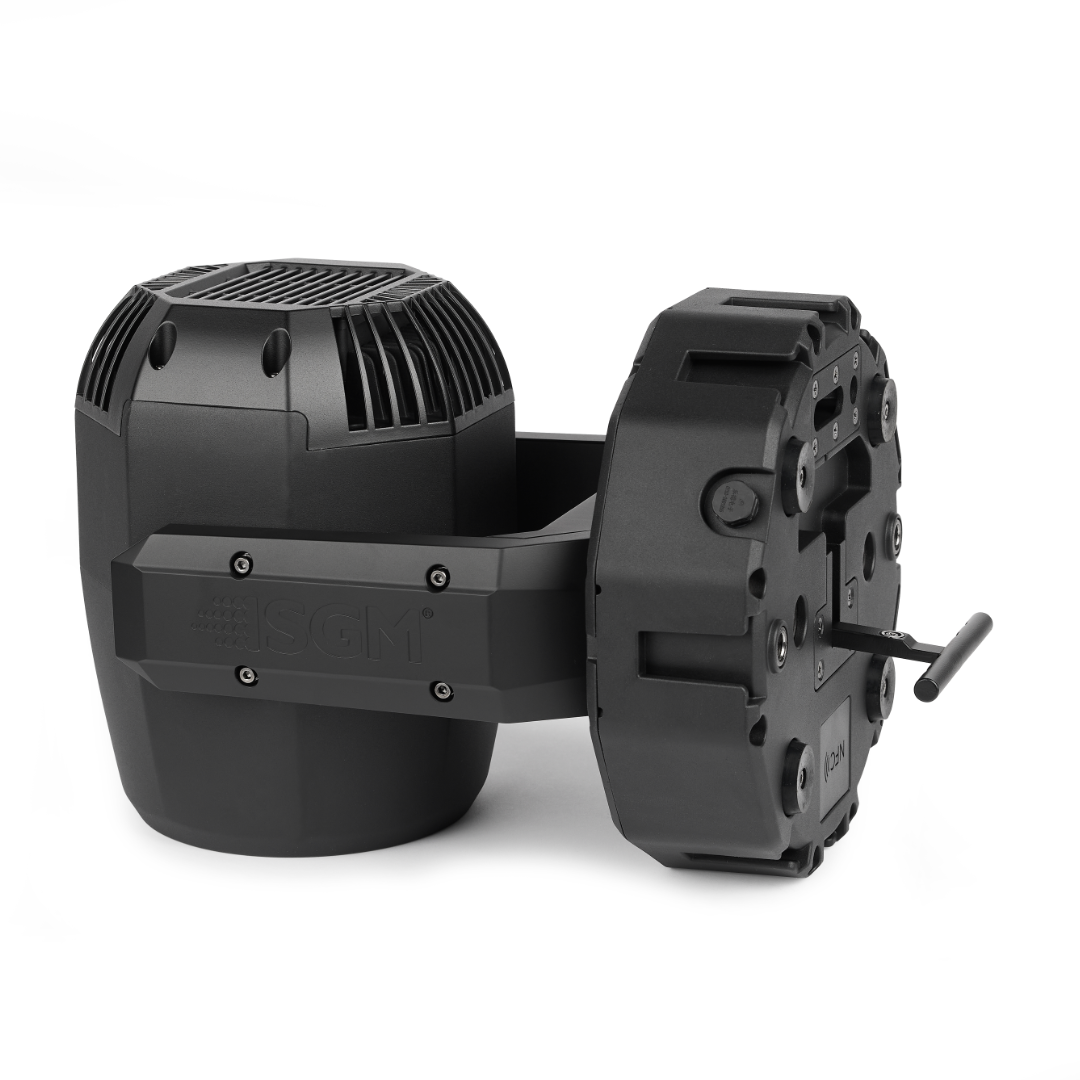

GENIO Beam connects into the wider GENIO system through SGM's tool-free rigging and fixture connectors — the same connector system shared across GENIO BlinderDot and GENIO PixelBar.
Specification
| Optical Data | |
|---|---|
| Lens diameter | 122 mm |
| Lightsource | RGBL |
| Prism | Kaleidoscope Prism Effect |
| Zoom | Motorized |
| Zoom range | 2° to 33° |
| Photometric | |
| Color quality - CRI | >75 |
| Color temperature range | 2000K - 10000K |
| Efficacy | 8.7 lm/W* |
| Light output - all on | 1200 lm* |
| Lux @ 5m | 35000 lux |
| Physical | |
| Color options | Black - RAL 9004 |
| IK rating | IK06 |
| IP class | IP54 |
| Material | Aluminium |
| Plastic | |
| Stainless steel | |
| Tempered Glass | |
| Net dimensions L x H x W (imperial) | 9.1 x 12.9 x 9.1 inches |
| Net dimensions L x H x W (metric) | 231 x 327 x 231 mm |
| Net weight | 8.15 kg (18 lbs) |
| Features | |
| Pan | Endless |
| Tilt | Endless |
| Electrical | |
| Input voltage (nominal) | 100 - 240 VAC; 50 / 60 Hz |
| Max power consumption | 200 W |
| Max power thru @ 100 V | 2.4 A |
| Max power thru @ 230 V | 0.9 A |
| Standby power consumption | 33 W |
| Programming and Control | |
| Protocol | RDM ANSI E1.20 |
| sACN | |
| Art-Net | |
| Setting and addressing | RDM ANSI E1.20 |
| NFC | |
| Connections | |
| DMX data in/out | RJ45 / RJ45 |
| Ethernet Connections | RJ45 connectors |
| Installation | |
| Maximum Units Vertical | 6 pcs |

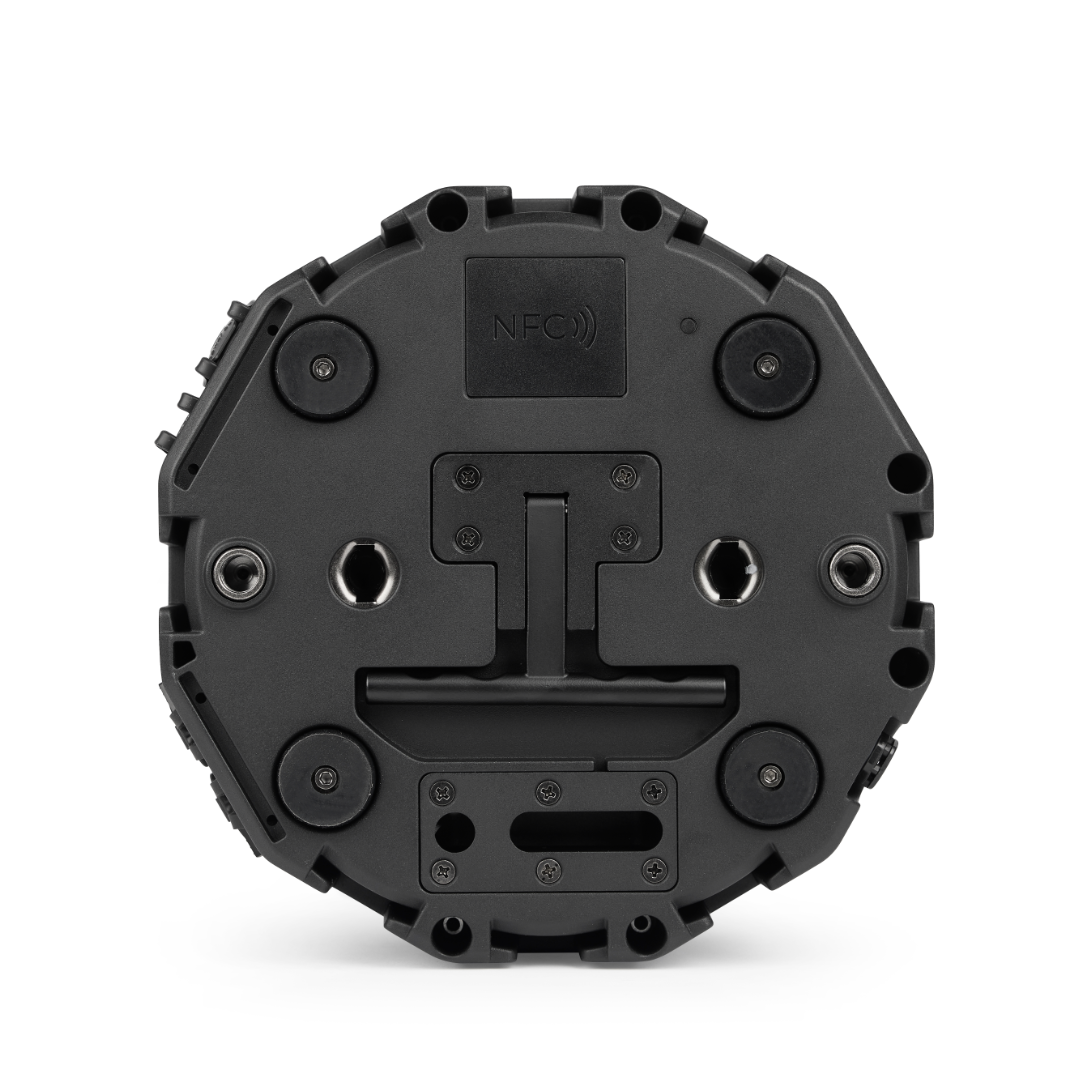

| Mounting point | 2 quarter-turn locking points for one Omega bracket |
| 2 qty. M-10 threaded mounting points for connection to bracket or surface | |
| Rigging possibilities | Hanging (Using the GENIO compatible connectors) |
| Safety features | Mount for safety wire |
| Thermal | |
| Cooling | Active, Forced Air, Temperature-regulated |
| Humidity (max.) | 98 % |
| Temperature range, operating | -10°C to 45°C |
| Temperature range, start-up | -10°C to 45°C |
| Temperature range, storage | -10°C to 45°C |
| Thermal protection | Automatic overtemperature protection |
| Total heat dissipation, max power | 682.4 BTU per hour |
| Total heat dissipation, standby | 112.6 BTU per hour |
| Included items | |
| Included items | 2 x GENIO Rigging Connector |
| 1 x GENIO Fixture Connector, M | |
| Foam Insert | |
Download
-
DMX Charts
-
User Manual and Specifications
Certifications & classifications
Ordering information
| Product name | Item number |
|---|---|
| GENIO Beam | 80300521 |
| Accessories | Item number |
|---|---|
| GENIO Rigging Connector - Set of 6 | |
| GENIO Fixture Connector, M - Set of 6 | |
| GENIO Fixture Connector, M - Set of 6 | 83063254 |
| GENIO Rigging Connector - Set of 6 | 83063252 |
