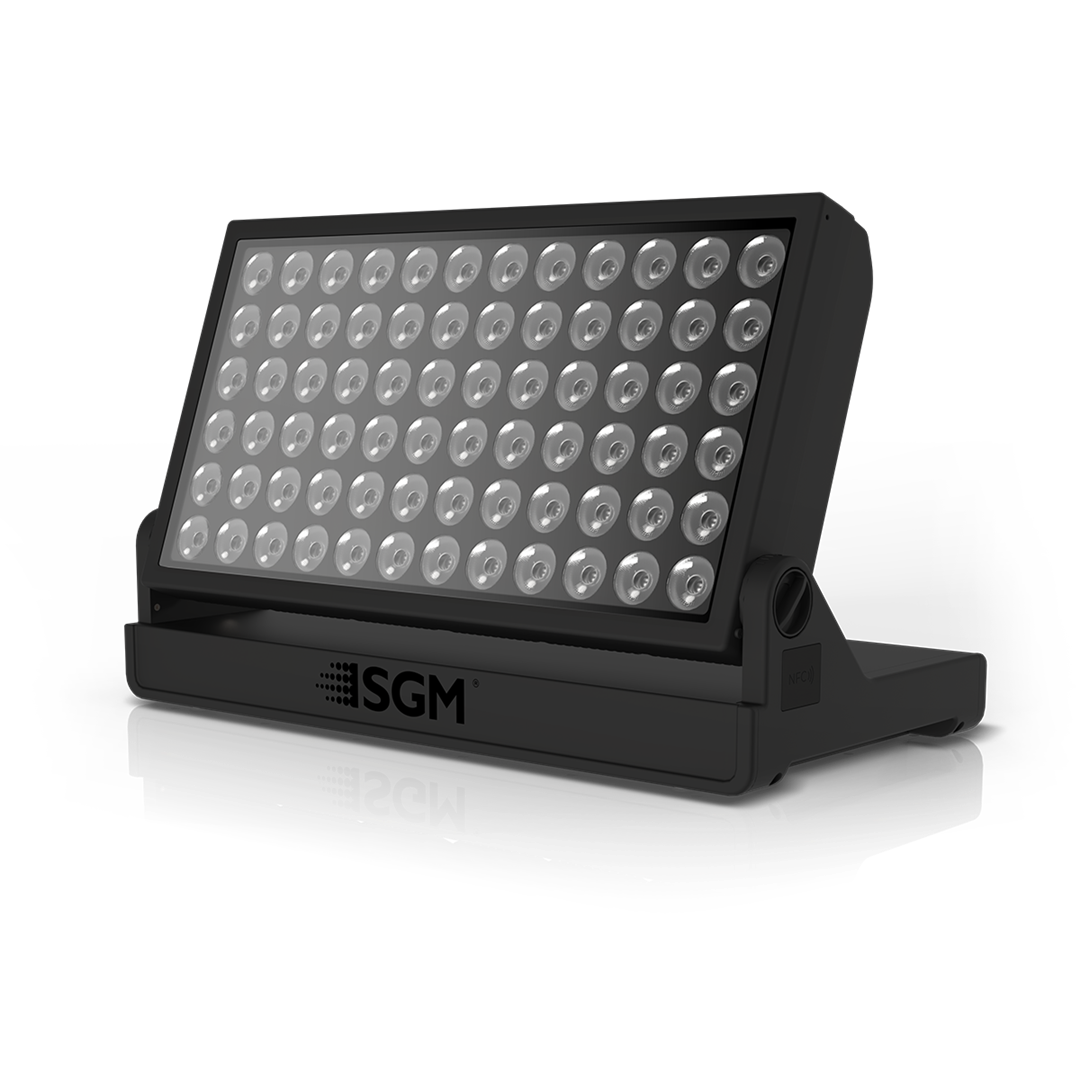

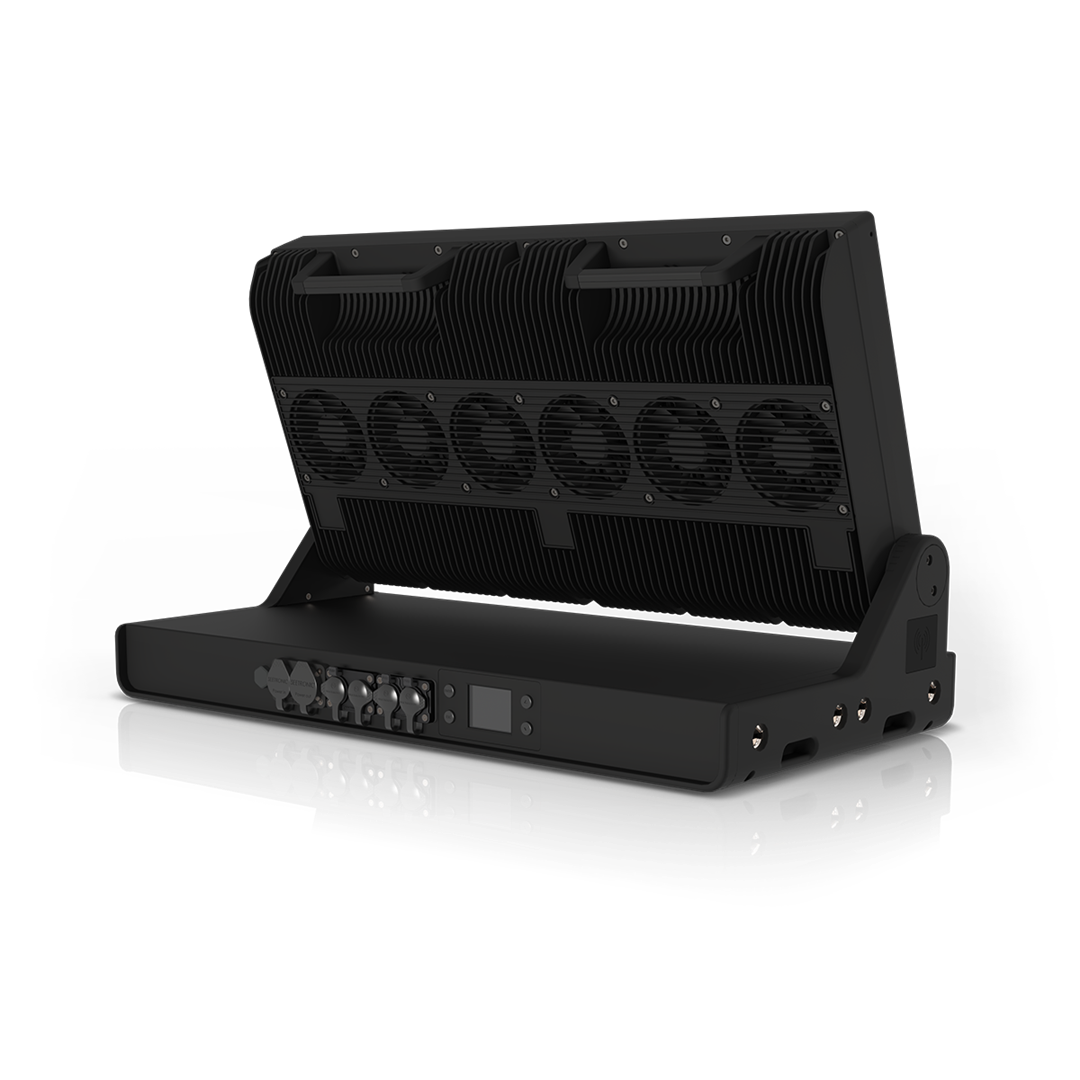

PALCO-12 Wash

Powerful, foldable, high output, color-changing wash light.

Housing colors

Black RAL 9004

Info shortcuts

Powerful 40W RGBL LED with ColorBoost™ technology
CRI 85+ (calibrated at 5600K CCT)
IP65-rated for outdoor use
DMX, RDM, ArtNet & sACN via 5-pin XLR and Ethernet
Integrated LumenRadio Wireless CRMX
NFC setup with proprietary iOS & Android app

This thermal management techonology provides Advaced Temperature Control monitored via sensors and software, keeping optimal LED junction temperatures, and ensuring maximum reliability for long-term use. The ThermalDriveTM system includes cutting-edge heat removal via passive thermal tecniques and active forced-air cooling (depending on the product), specifically designed to maintain LED efficiency while extending fixture's lifetime.

All luminaires featuring this technology include all the TruColorTM capabilities, plus high color rendering (CRI / TLCI / CQS 90+) when using all RGB or RGBAM LEDs to achieve high-output dynamic whites. SGM's TruColor+TM luminaires use an enhanced color engine that improves accuracy and consistency both for color mixing and low-end dimming, while using the same procedures to match the SGM color palette.

Designer selectable algorithm for advanced color path control, allowing any mixed RGB value to hold a specific color point in the spectrum by modifying the color temperature data. Color filter emulation presets react to color temperature adjustments when this color path is selected. All products featuring the next-gen VersaPathTM color engine also include the standard SGM proprietary color mixing algorithm.

Powerful, foldable, and made for large-scale impact.

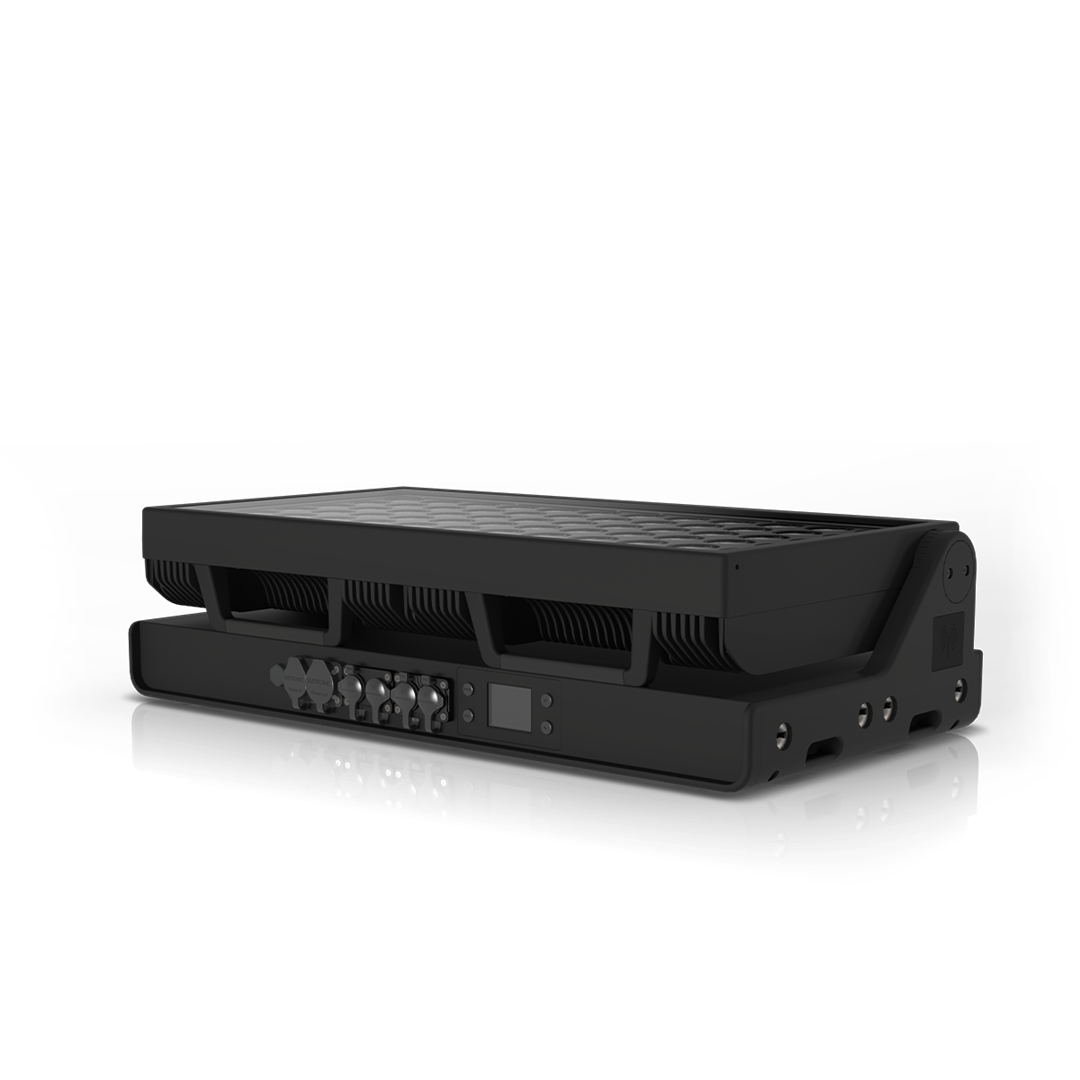

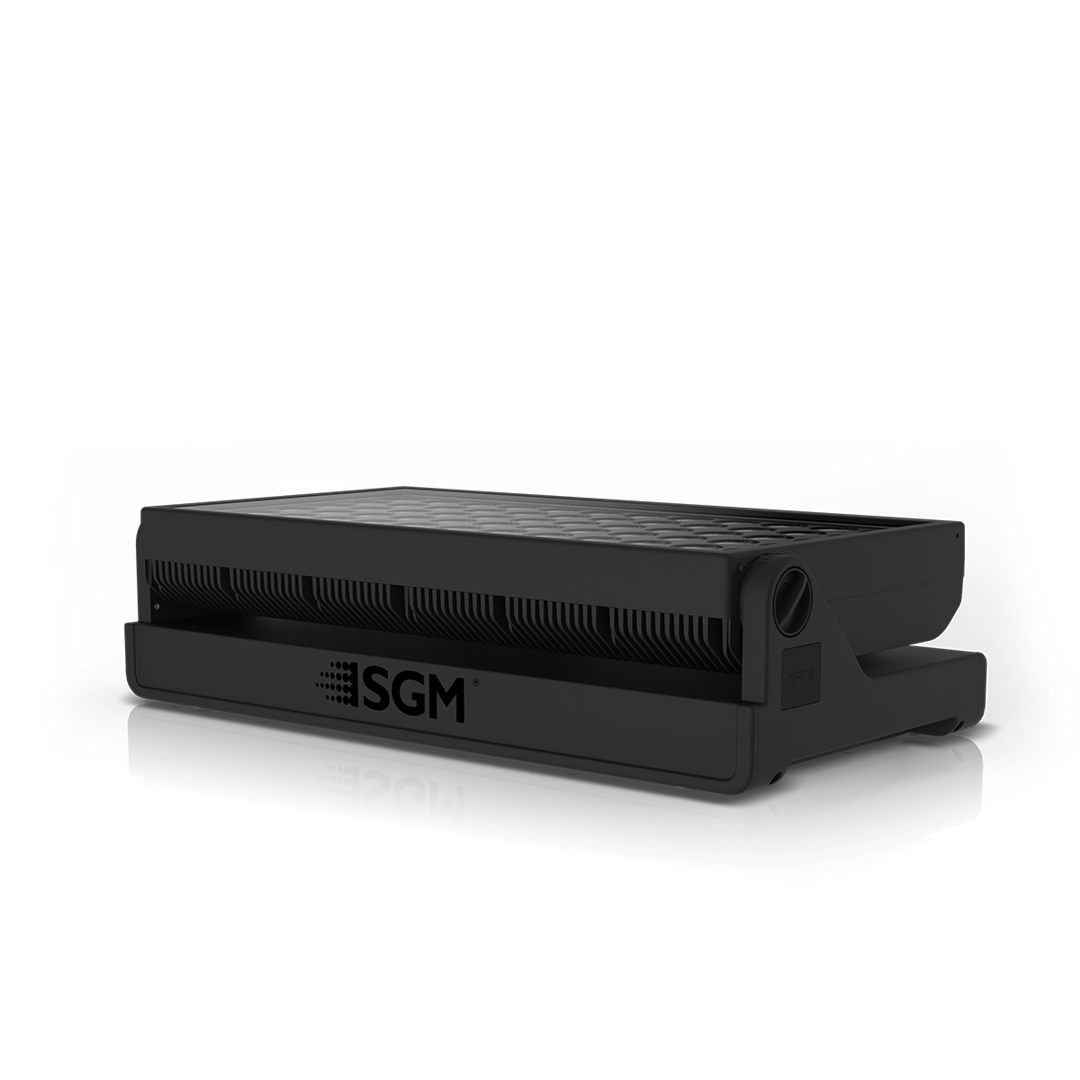

When only maximum output will do, the PALCO-12 Wash delivers. Its foldable, compact design ensures easy transport, setup, and storage—perfect for touring, outdoor events, and high-demand productions.

RGBL LEDs with Color Boost Technology deliver exceptional brightness, vivid colors, and high color rendering throughout the full CCT range. With wired and wireless connectivity and accessory compatibility, the PALCO-12 Wash is built for professionals who demand both power and practicality.

Specification

Optical Data
Dominant wavelength (λd) - blue	typical 452 nm*
Dominant wavelength (λd) - green	typical 527 nm*
Dominant wavelength (λd) - red	typical 625 nm*
LED expected lifetime (L70)	50,000 hours
Lightsource	72 X High Output RGBL LEDs
Optional filters	Wall Wash Filter, PALCO
	Scrim Filter, PALCO
	Narrow - 20° Green, PALCO
	Medium - 45° Red, PALCO
	Wide - 80° Blue, PALCO
	10x60° Horizontal - Orange, PALCO
	60x10° Vertical - Yellow, PALCO
Photometric
Color temperature range	2000K - 10000K
Native beam angle(s)	13°
Native field angle(s)	27°
Preliminary light output all LEDs on	60000 lm
Physical
Color options	Black - RAL 9004
IK rating	IK06
IP class	IP65
Lens material	PMMA
Material	Plastic
	Stainless steel
	Tempered Glass
	Recycled aluminium
Net dimensions L x H x W (imperial)	25.1 x 16 x 12.8 inches
Net dimensions L x H x W (metric)	636 x 407 x 324 mm
Electrical
Input voltage (nominal)	100 - 240 VAC; 50 / 60 Hz
Max inrush current 230VAC	50 A
Max power consumption	1600 W
Thermal
Cooling	Active, Forced Air, Temperature-regulated
Humidity (max.)	98 %
Temperature range, operating	-20°C to 50°C
Temperature range, start-up	-20°C to 50°C
Temperature range, storage	-20°C to 50°C
Total heat dissipation, max power	5459.2 BTU per hour
Included items
Included items	2 Omega bracket with quater-turn fasteners
