PDM - Power & Data Manager

Item no. 80070240

Info shortcuts

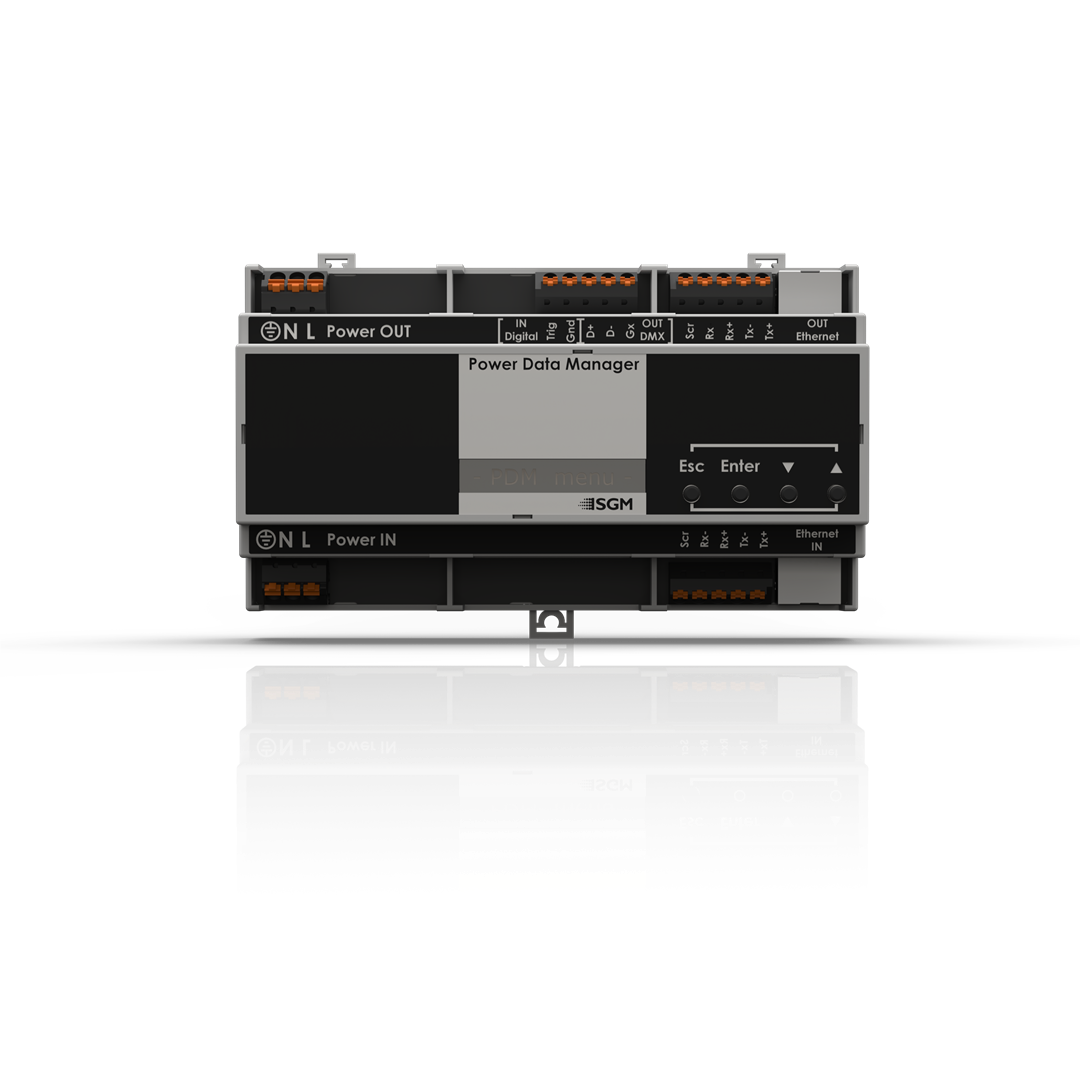

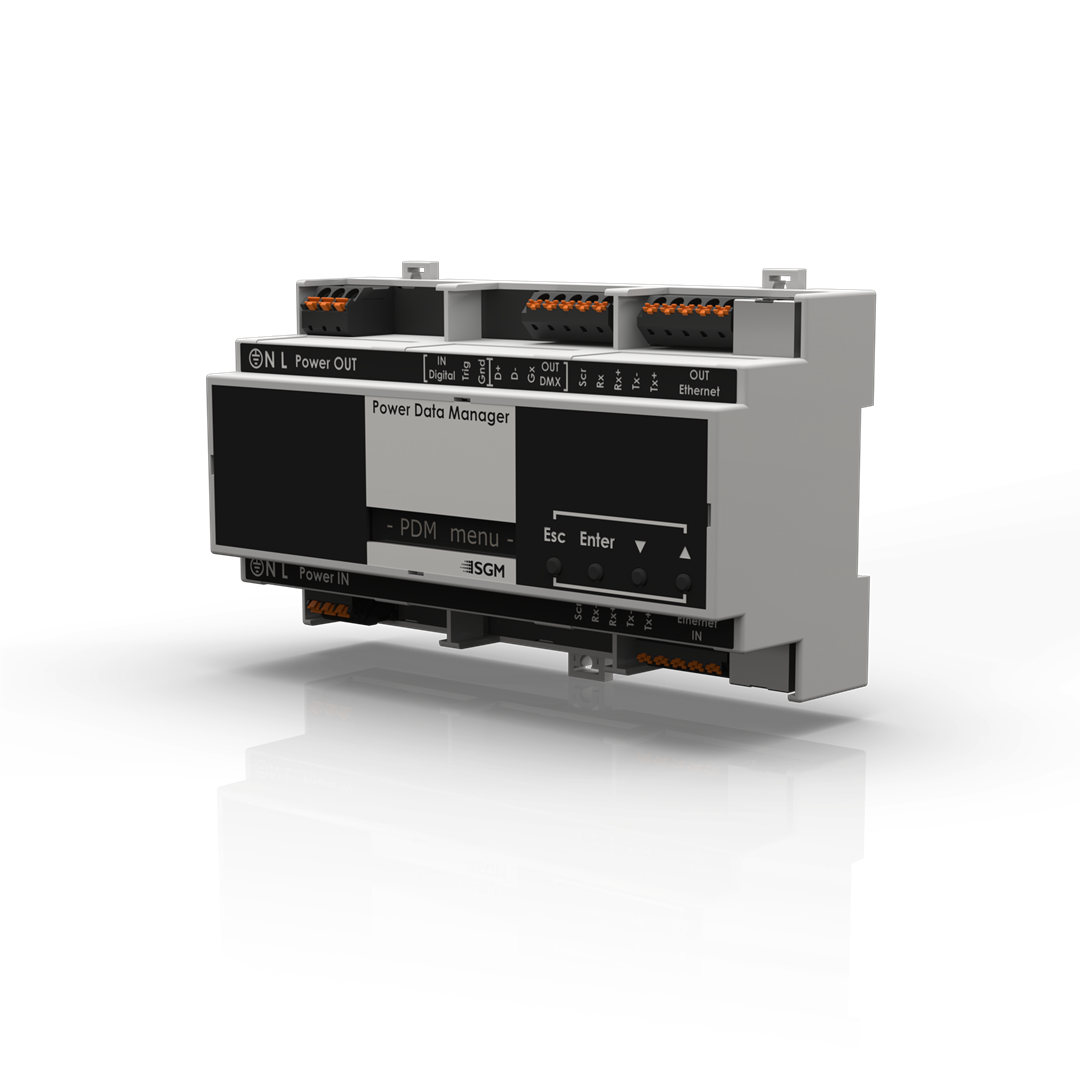

The Power & Data Manager is a device which controls and manages power characteristics as well as providing a networked control and configuration solution for newer SGM Light products. It is available as a DIN rail mount assembly or in combination with an exterior, IP66 rated enclosure intended for permanent exterior surface mounting. The Power & Data Manager can increase the number of fixtures connected to a standard breaker by actively managing and controlling inrush power.

Specification

Physical
IP class	IP20
Material	PC (UL 94 V-0)
Net dimensions L x H x W (imperial)	2.3 x 3.5 x 6.3 inches
Net dimensions L x H x W (metric)	58 x 90 x 159 mm
Net weight	0.4 kg (0.9 lbs)
Electrical
Input voltage (absolute max. rating)	90 - 305 VAC; 50 / 60 Hz
Input voltage (nominal)	100 - 277 VAC; 50 / 60 Hz
Max power consumption	5 W
Max power thru @ 100 V	15 A
Max power thru @ 230 V	16 A
Standby power consumption	4 W
Programming and Control
Data communication	100 Mb
Protocol	SGM VP-Net
Connections
DMX data in/out	Spring terminals AWG 28-16 (Output)
Ethernet Connections	RJ45 connectors
	Spring terminals AWG 28-16
Power	Spring terminals AWG 24-12
Thermal
Cooling	Passive
Humidity (max.)	95 %
Temperature range, operating	-20°C to 50°C
Temperature range, storage	-20°C to 60°C
Thermal protection	Automatic overtemperature protection
Total heat dissipation, max power	17.1 BTU per hour
Total heat dissipation, standby	13.6 BTU per hour
Conforms To
CE - 2014/30/EU: EMC Directive	EN 61000-3-2
	EN 61000-3-3
	EN 55032
	EN 55035
CE - 2014/35/EU: Low Voltage Directive	EN 62368-1
UL	UL Std. 62368-1
Certified To
CSA	CSA Std. C22.2 No. 62368-1, Ed:3
