VP Data Redundancy Interface

Item no. 83062048

Info shortcuts

Intended for data redundancy control of VP fixtures
Waterproof / Dustproof

The VP Data Redundancy Interface is designed to benefit from the data redundancy control of VP Processor. It allows data to travel in both directions in case of signal failures. When connected to the last fixture in a daisy chain of VP units, this box allows redundant communication with a VP Processor via a RJ45 cable.

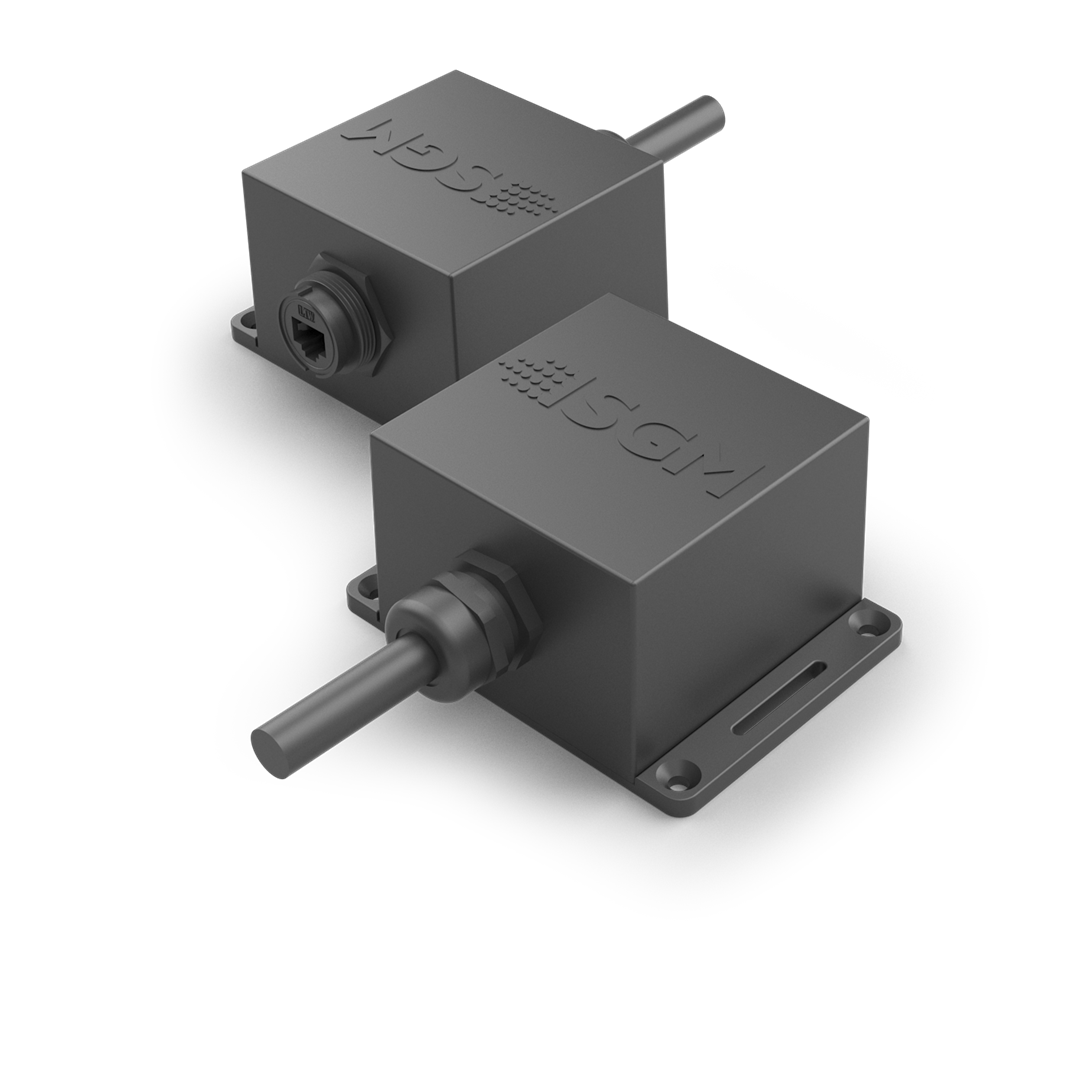

The VP Data Redundancy Interface is a waterproof / dustproof connection box with a VP cable ending in a VP male connector and a waterproof RJ45 female chassis connector. This item must be installed after the last VP fixture in the cabled string and before the VP Processor input / output.

Specification

Physical
Net dimensions L x H x W (imperial)	4.1 x 2.1 x 3 inches
Net dimensions L x H x W (metric)	104 x 54 x 77 mm
Connections
Data / Power input	5 meter cable with 8 pin X-Lok connector IP68
Data / Power output	8 pin X-Lok connector IP68
Thermal
Temperature range, operating	-20°C to 60°C
Temperature range, start-up	-20°C to 60°C
Temperature range, storage	-40°C to 80°C
