- Works as a pixel batten, strobe stick or cyclorama wash — one fixture, multiple roles
- 40 individually controllable RGB zones plus 20 white zones for precise chases and gradients
- Electronic frost for instant beam softening
- Connects into the GENIO system with tool-free rigging connectors
- Built-in NFC for quick setup and configuration

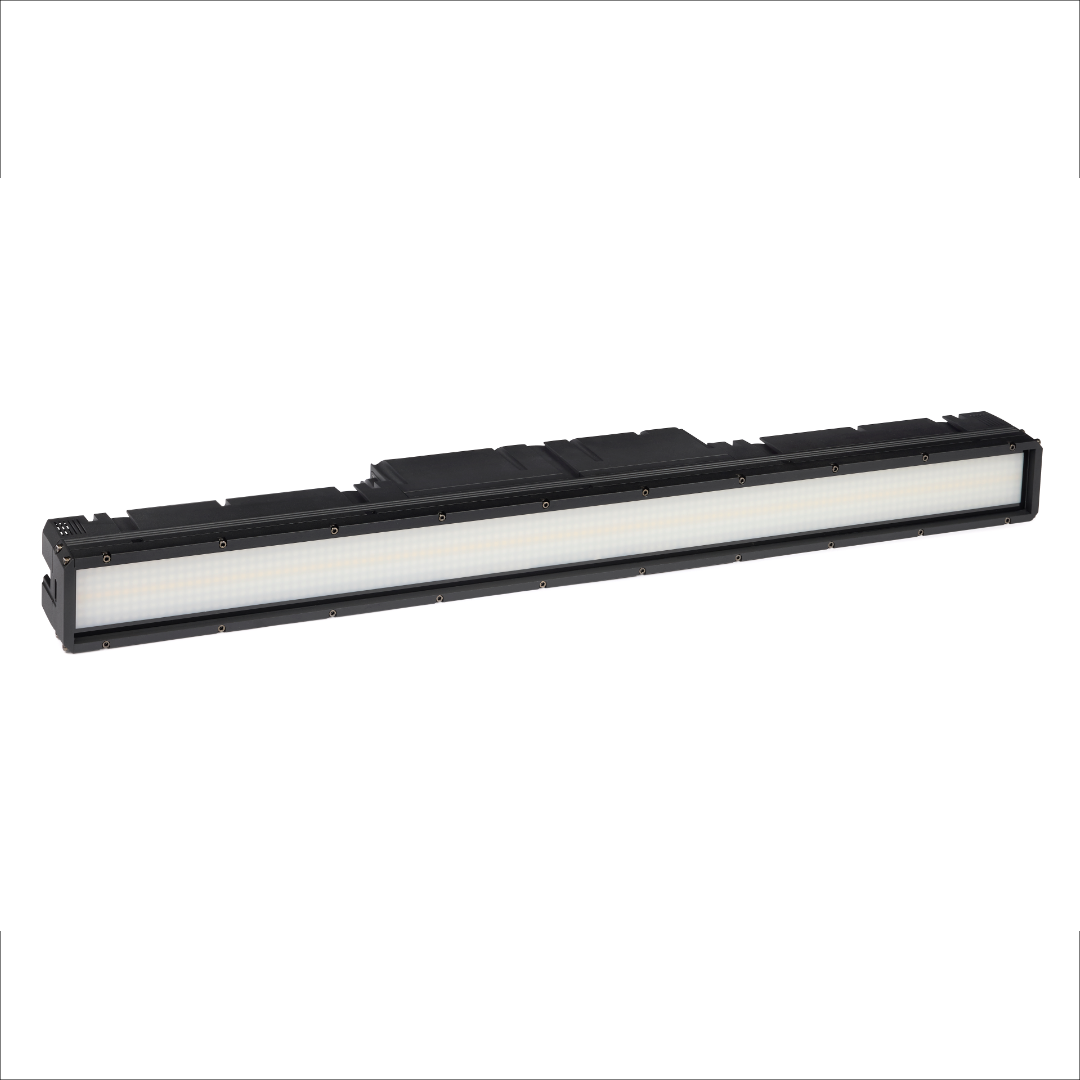

GENIO PixelBar is the rhythm engine of the GENIO system — a dynamic, IP65-rated RGB+W linear fixture with 40 independently controllable pixel zones, connecting into the full GENIO family through SGM's tool-free rigging connectors.
GENIO PixelBar brings rhythm to the GENIO system. This dynamic linear fixture works as a pixel batten, a strobe stick or a cyclorama wash, adapting to whatever tempo or texture a design calls for.

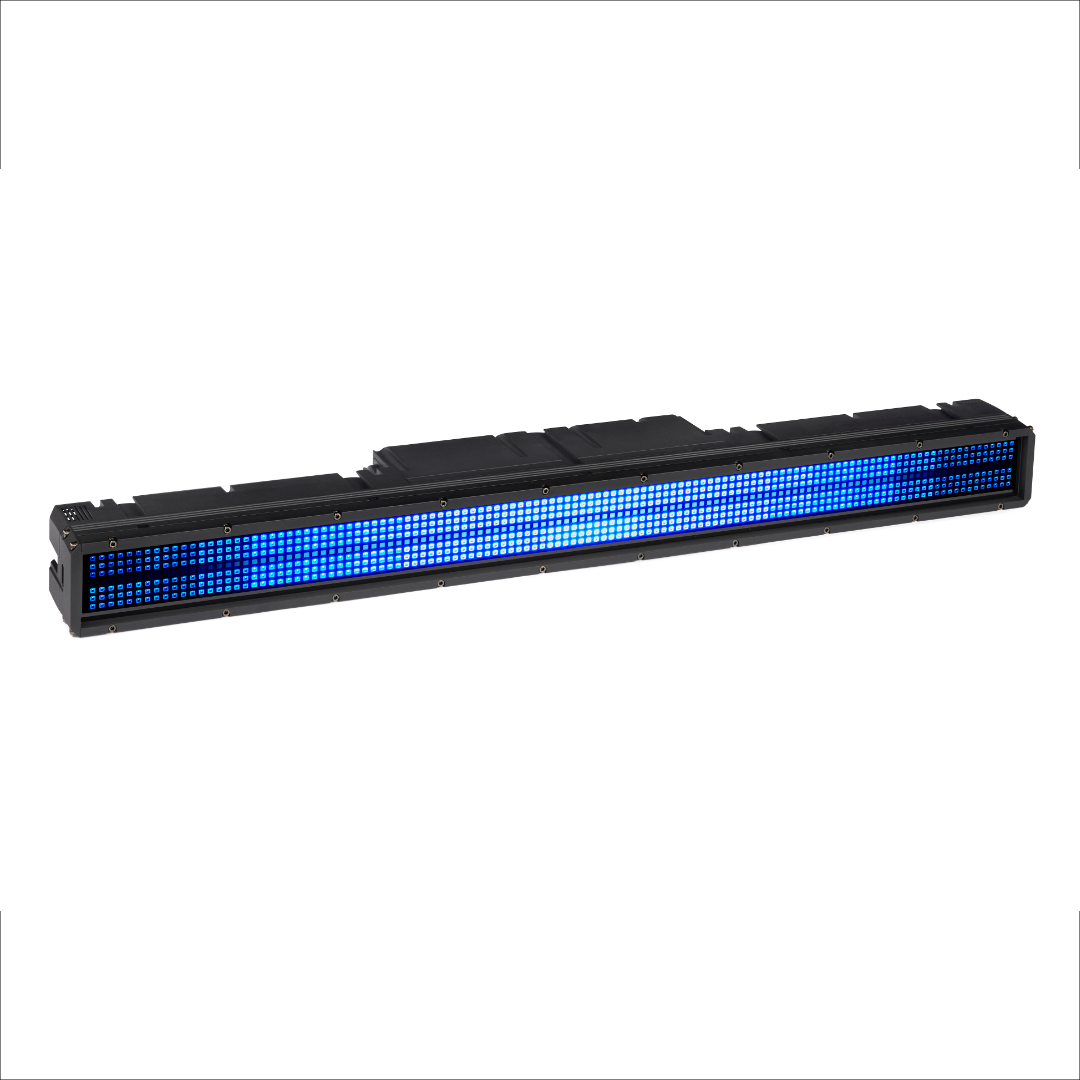

A high-impact RGB+W multi source drives 40 individually controllable RGB zones plus 20 white zones, delivering up to 31,000 lumens with electronic frost for instant beam softening.
GENIO PixelBar connects into the wider GENIO system through SGM's tool-free rigging and fixture connectors — the same connector system shared across GENIO Beam and GENIO BlinderDot — making it possible to stack up to 6 units vertically or combine it with the rest of the GENIO family.
Specification
| Optical Data | |
|---|---|
| Frost | Electronic Frost |
| Lightsource | 40 x RGB Controllable Segments + 20 x CW Strobe Segments |
| Photometric | |
| Color quality - CRI | >90 |
| Color temperature range | 2000K - 10000K |
| Light output - all on | 31000 lm* |
| Physical | |
| Color options | Black - RAL 9004 |
| IP class | IP65 |
| Material | Aluminium |
| Plastic | |
| Stainless steel | |
| Tempered Glass | |
| Net dimensions L x H x W (imperial) | 39.4 x 3.5 x 5.1 inches |
| Net dimensions L x H x W (metric) | 1000 x 90 x 129 mm |
| Net weight | 8.5 kg (18.7 lbs) |
| Electrical | |
| Input voltage (nominal) | 100 - 240 VAC; 50 / 60 Hz |
| Max power consumption | 600 W |
| Programming and Control | |
| Protocol | RDM ANSI E1.20 |
| sACN | |
| Art-Net | |
| Setting and addressing | RDM ANSI E1.20 |
| NFC | |
| Connections | |
| DMX data in/out | RJ45 / RJ45 |
| Ethernet Connections | RJ45 connectors |
| Installation | |
| Maximum Units Vertical | 6 pcs |
| Mounting point | 2 x 2 quarter-turn locking points for one or two Omega brackets |
| Rigging possibilities | Hanging (Using the GENIO compatible connectors) |
| Safety features | Mount for safety wire |
| Thermal | |

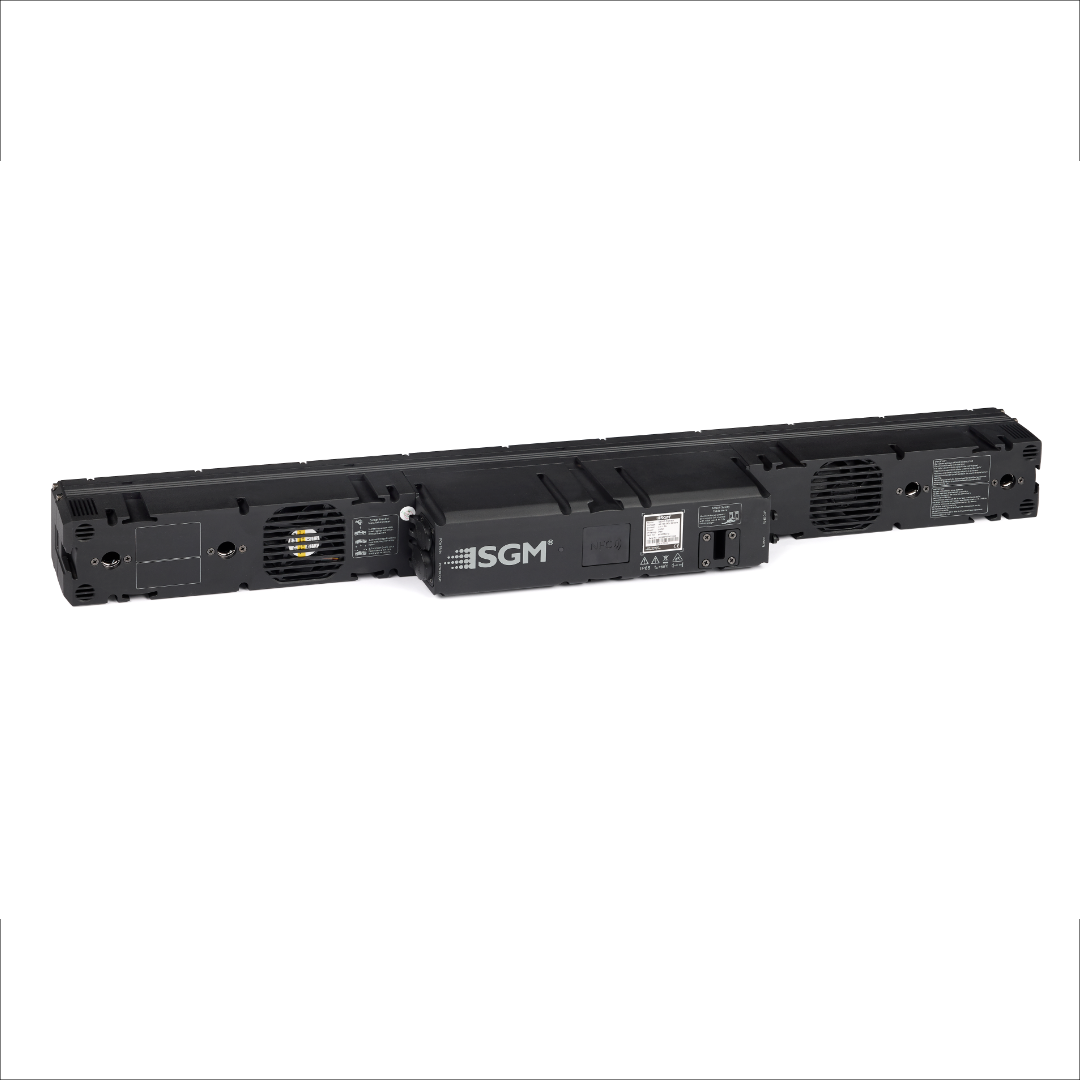

| Cooling | Active, Forced Air, Temperature-regulated |
| Humidity (max.) | 98 % |
| Temperature range, operating | -10°C to 50°C |
| Temperature range, start-up | -10°C to 50°C |
| Temperature range, storage | -10°C to 50°C |
| Thermal protection | Automatic overtemperature protection |
| Total heat dissipation, max power | 2047.2 BTU per hour |
| Included items | |
| Included items | 2 x GENIO Fixture Connector, M |
| 4 x GENIO Rigging Connector | |
| Foam Insert | |
Download
-
DMX Charts
-
User Manual and Specifications
Certifications & classifications
Ordering information
| Product name | Item number |
|---|---|
| GENIO PixelBar | 80300522 |
| Accessories | Item number |
|---|---|
| GENIO Rigging Connector - Set of 6 | |
| GENIO Fixture Connector, M - Set of 6 | |
| GENIO Fixture Connector, M - Set of 6 | 83063254 |
| GENIO Rigging Connector - Set of 6 | 83063252 |
